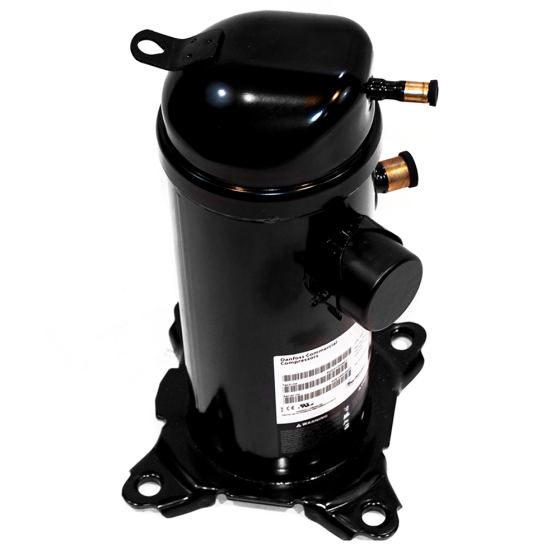

Danfoss Hermetic Scroll Compressor R407C, 47,000BTU, 460Vac, Three Phase
Item
HRP047T4LP6
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 47,000
• Refrigerant: R407C
• Connection Type: Spade Terminals
• Oil: PVE (Polyvinyl)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• Hertz: 60
| Electrical | |
|---|---|
| Hertz | 60 | LRA | 50 | Phase | 3 | RLA | 7.7 | Voltage | 460 |
| Specification | |
|---|---|
| Refrigerant | R407C | Compressor Type | Scroll | BTU Rating | 46 to 50kBTU | Suction Line Height | 10.8" | Discharge Line Height | 15.9 | Discharge Line Size | 1/2" | Oil | PVE (Polyvinylether) | BTU Output | 47000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 41 | Exterior Dimensions (D) (inches) | 11.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 13.000000 | Shipping Weight (lbs) | 41.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
