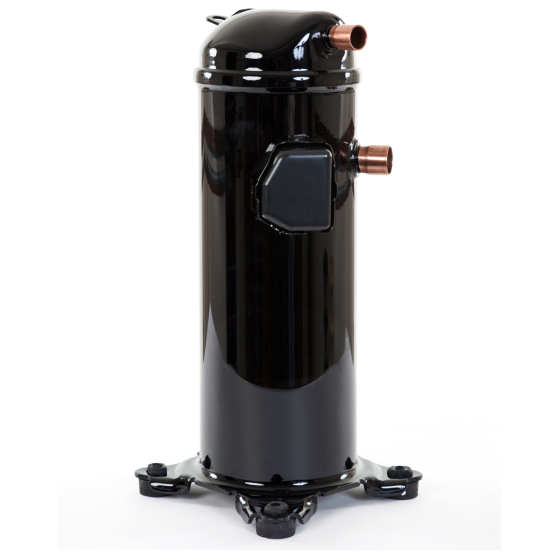

Danfoss Hermetic Scroll Compressor R22, 53,720BTU, 208/230Vac, Three Phase
Item
HRM054U2LC6A
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 53,720
• Refrigerant: R22
• Connection Type: Screw Terminals
• Oil: AB (Alkylbenzene)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• Hertz: 60
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 16.7 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 51 to 55kBTU | Oil | AB (Alkylbenzene) | Suction Line Height | 11" | Discharge Line Height | 16.6" | Discharge Line Size | 1/2" | BTU Output | 54000 | Compressor Type | Scroll | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 10.5 | Exterior Dimensions (D) (inches) | 11.000000 | Exterior Dimensions (W) (inches) | 89.000000 | Exterior Dimensions (H) (inches) | 19.000000 | Shipping Weight (lbs) | 10.500000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
