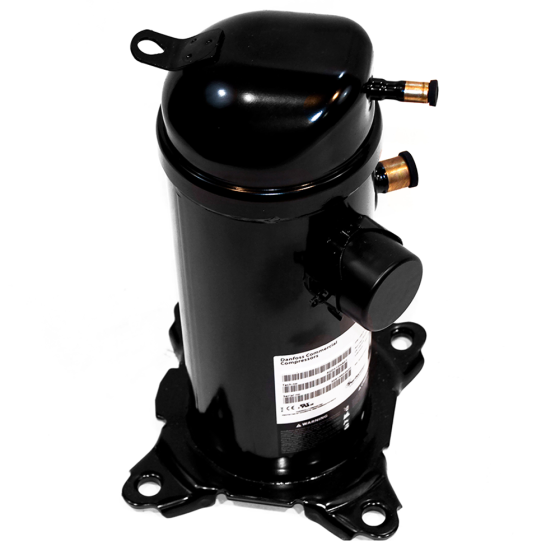

Danfoss Hermetic Scroll Compressor R22, 47,743BTU, 208/230Vac, Single Phase
Item
HRM048U1LP6A
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 47,743
• Refrigerant: R22
• Connection Type: Spade Terminals
• Oil: AB (Alkylbenzene)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 60/370µF
• Hertz: 60
| Electrical | |
|---|---|
| Hertz | 60 | LRA | 150 | Phase | 1 | RLA | 26.6 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 46 to 50kBTU | Suction Line Height | 11" | Discharge Line Height | 16.6" | Discharge Line Size | 1/2" | Oil | AB (Alkylbenzene) | BTU Output | 48000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 19 | Exterior Dimensions (D) (inches) | 14.000000 | Exterior Dimensions (W) (inches) | 88.000000 | Exterior Dimensions (H) (inches) | 13.000000 | Shipping Weight (lbs) | 19.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
