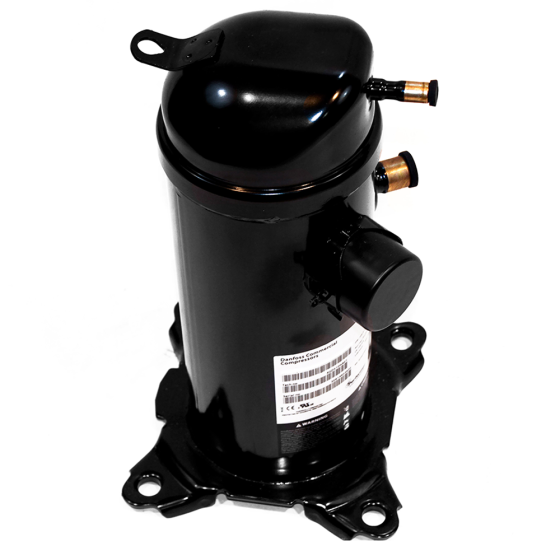

Danfoss Hermetic Scroll Compressor R22, 33,510BTU, 208/230Vac, Three Phase
Item
HRM034U2LP6A
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 33,510
• Refrigerant: R22
• Connection Type: Spade Terminals
• Oil: AB (Alkylbenzene)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• Hertz: 60
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 11.2 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 31 to 35kBTU | Suction Line Height | 9.8" | Discharge Line Height | 14.9" | Discharge Line Size | 1/2" | Oil | AB (Alkylbenzene) | BTU Output | 34000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 61 | Exterior Dimensions (D) (inches) | 10.500000 | Exterior Dimensions (W) (inches) | 61.000000 | Exterior Dimensions (H) (inches) | 19.000000 | Shipping Weight (lbs) | 61.000000 |
