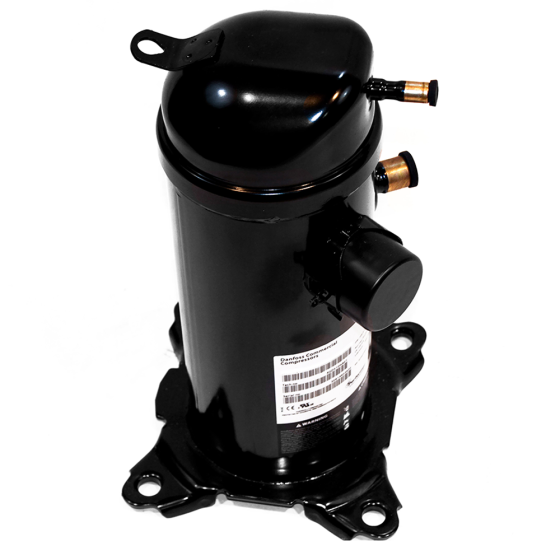

Danfoss Hermetic Scroll Compressor R410A, 54,520BTU, 208/230Vac, Single Phase
Item
HRH054U1LP6
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 54,520
• Refrigerant: R410A
• Connection Type: Spade Terminals
• Oil: PVE (Polyvinyl)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 80/440µF
• Hertz: 60
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 29 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 51 to 55kBTU | Oil | PVE (Polyvinylether) | Suction Line Height | 11.0" | Discharge Line Height | 16.6" | Discharge Line Size | 1/2" | BTU Output | 55000 | Compressor Type | Scroll | Refrigerant | R-410A |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 92 | Exterior Dimensions (D) (inches) | 11.000000 | Exterior Dimensions (W) (inches) | 10.000000 | Exterior Dimensions (H) (inches) | 23.000000 | Shipping Weight (lbs) | 92.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
