APPLICATIONS

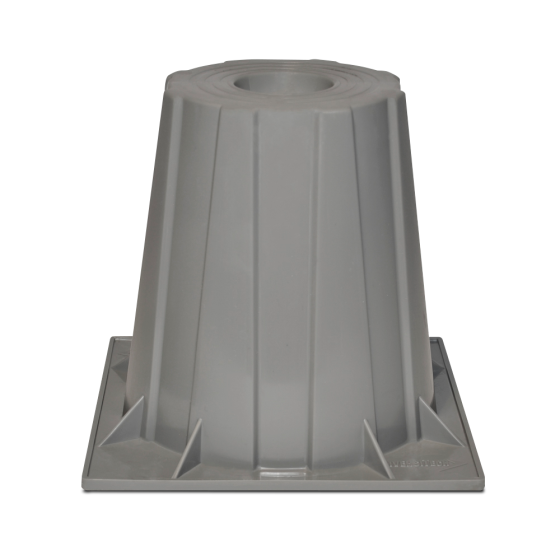

Heat Pump Risers provide a sturdy and stable solution for adding elevation to a heat pump or air handler.
FEATURES & BENEFITS
• High-pressure injection molded polypropylene – gray color.
• Butyl mastic on the top and bottom guarantees no slipping.
• Thick wall sections and generous reinforcement are employed in the most effective areas, yielding a strong yet lightweight structure. The nestable design allows maximum shipping and storage density.
• An HPR-6 Heat Pump Riser can handle a uniform load of 2000 pounds with no failure.
• An HPR-6 Heat Pump Riser can handle a point load, applied to one square inch area in center of footpad recess on top of single HPR, of less than 560 pounds with no failure.
• Simply peel the release liner from the mastic before placing the Heat Pump Riser and equipment.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | .5 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 0.500000 |
