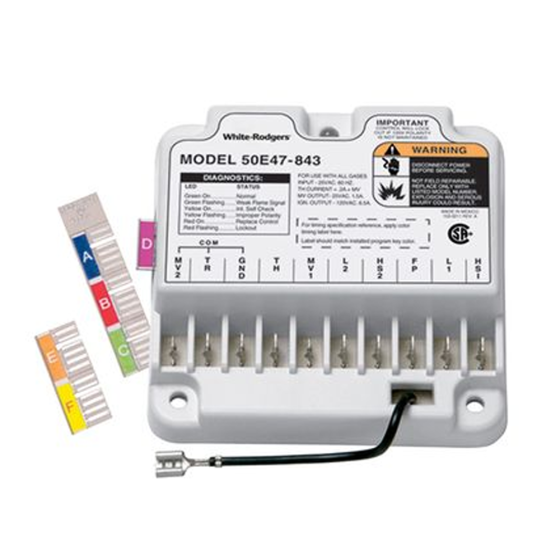

Non-Integrated Ignition Module
Item
50E47-843
FEATURES & BENEFITS
• Plug in program keys for quick selection of factory timings.
• Microprocessor-based ignition control.
• Works with single rod or dual rod remote sensor.
• Provides ignition, proof of ignition and precise timings.
• LED diagnostic indicator.
• For use in natural and LP gas applications.
• Voltage (Low): 24 Vac, 50/60 Hz
• Voltage (Line): 120 Vac, 50/60 Hz
• Temperature Range Ambient Operating: -40 degrees to 175 degrees F (-40 degrees to 79 degrees C)
• Humidity Range: 5% to 93% relative humidity (non-condensing)
• Certifications: CSA (Canada & US)
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 6.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.000000 |
