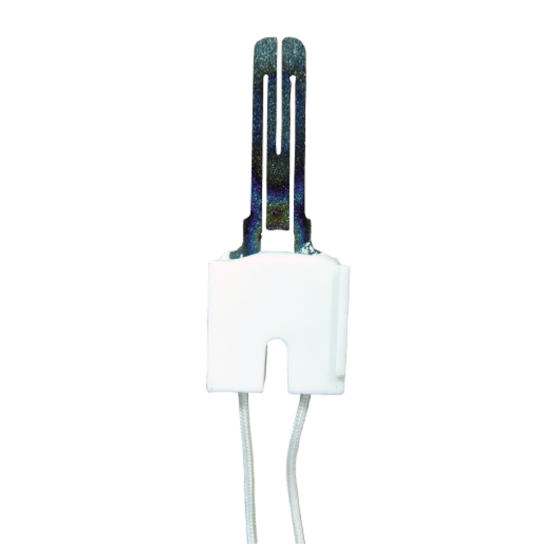

Supco® Silicon Carbide Hot Surface Igniter 120Vac
Item
IG408
APPLICATIONS
• Direct replacement kit for Robertshaw® 41-408, Amana® B340039P01, Johnstone® L37-815, Johnstone® 45-545, Norton® 271N, Norton® MB457025, Norton® MB478266, Rheem Rudd® 62-22441-01, Rheem Rudd® 62-22668-93, Starlite® 1408, Surface Igniter® DS408KX, Trane® IGN34 & White Rodgers® 767A-372.FEATURES & BENEFITS
• Superior gas lighting ability.• Lower power consumption.
• 18 gauge copper high temperature fiberglass insulated lead wires.
• Supco® flat igniters offer an efficient , stronger, reliable hot surface Silicon Carbide design.
• Faster time to temperature response.
• Stronger more durable design.
• More robust in transit.
• Higher resistance to oxidation.
• Longer usable life.
• Cold Resistance: 40-100 Ohms @ 75°F +/- 10°F
• Amperage: 3.5 - 5 @ 132 Vac Max
• Voltage: 120Vac
• Time to Temperature (1800°F): < 17 @120Vac
Electrical | |
---|---|
Voltage | 120 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.000000 |
