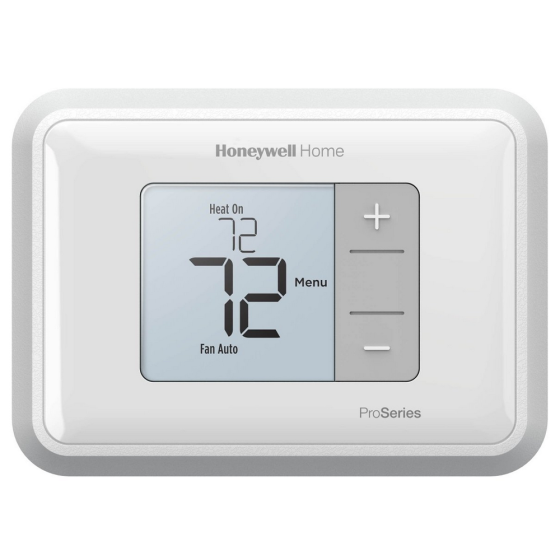

Honeywell® T3 PRO Non-Programmable Digital Thermostat 1H/1C (1H/1C HP), 24Vac/3Vdc (2 AA)

FEATURES

The T3 Pro is designed for those who want to keep their comfort simple. This intuitive non-programmable thermostat has an easy-to-read digital display, up and down vertical buttons and a rectangular footprint that makes it ideal for covering up old thermostat wall marks.

• 1H/1C and 2H/1C Heat pump model

• Ready out of the box

• Large, backlit digital display

• Intuitive up and down vertical buttons

• Precise comfort accuracy of +/-1°F

• Minimal callbacks

• UWP for easy upgrades

• 5-year warranty

• Private label available for co-branding

SPECIFICATIONS

• Product Features: Ready out of the box, Large, backlit digital display, Intuitive up and down vertical buttons, Precise comfort accuracy of +/-1°F, UWP for easy upgrades, 5-year warranty

• Stages: 1 Heat/1 Cool Heat Pump Systems, 1 Heat/1 Cool Conventional Systems

• Display Size: 3.79 sq in

• Display Language: English

• Modes of Operation: Heat, Cool

• Alerts and Reminders: Battery Replacement, Sensor Error, Memory Error

• Power Supply: Battery Powered, Hardwired

• Warranty: 5 Years

• Includes: Thermostat, UWP Mounting System, Decorative Cover Plate, Screws and anchors, 2 AA Batteries, Literature

• Wi-Fi: No

• Z-Wave: No

• RedLINK: No

• Color: White

• Sensor Type: Thermistor

• Ambient Operating Temperature (Max) : 102 °F, 39 °C

• Ambient Operating Temperature (Min) : 37 °F, 2.8 °C

• Differential Temperature: ± 1 °F, ± 0.5 °C

• Terminal Designations: R, Rc, C, W, O/B, Y, G

Specifications

Specification
Stages (Conventional)	1 Heat, 1 Cool
Stages (Heat Pump)	1 Heat, 1 Cool
Power Method	Hardwire (24Vac)/Battery (3Vdc)
Display Size	3.8 sq. in.
WiFi Capability	No
Temporary Hold	No
Permanent Hold	No
Millivolt Compatible	No
Touchscreen	No
Battery Backup	Yes
Filter Indicator	No
Humidification Controls	No
Key Pad Lockout	No
Remote Sensing Capability	No

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	2
Exterior Dimensions (D) (inches)	7.000000
Exterior Dimensions (W) (inches)	5.000000
Exterior Dimensions (H) (inches)	3.000000
Shipping Weight (lbs)	1.000000

Resources

TH3110U2008_Guide.pdf

TH3110U2008_Installation.pdf

TH3110U2008_Submittal.pdf
