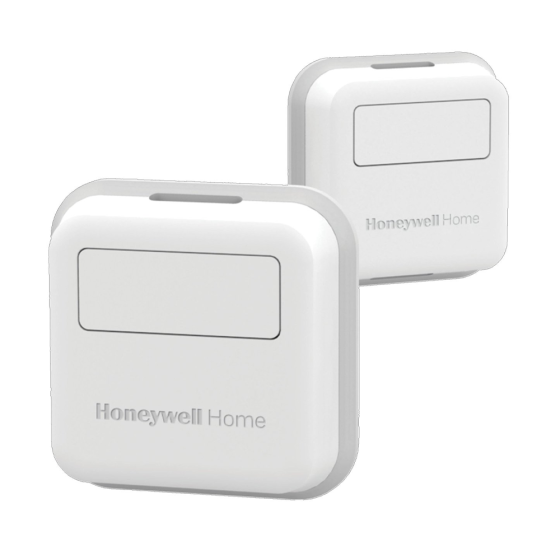

Honeywell Home RedLINK 3.0 Indoor Sensors for T10+ (2pk)

Item

C7189R3002-2

FEATURES

The powerful Honeywell Home RedLINK® Room Sensors have a wireless, 200-feet range that’s designed to sense indoor temperature, humidity and motion. The sensors transmit through most building materials to the T10 thermostat. They are quick and easy to install.

SPECIFICATIONS

• Application: Wireless Indoor temperature, humidity and motion Sensor

• Warranty: 5 Years

• Includes: C7189R3002 Indoor Sensor (2), 2 AAA alkaline batteries, Mounting hardware

• Product Height: 2.6 in, 66.25 mm

• Product Width: 2.6 in, 66.25 mm

• Color: White

• Sensor Type: Thermistor

• Ambient Operating Temperature (Min): 0 °F (35 °F For optimal battery life), -18 °C (2 °C For optimal battery life)

• Ambient Operating Temperature (Max): 120 °F (114 °F For optimal battery life), 49 °C (44.5 °C For optimal battery life)

• Environmental Conditions Measured: Temperature, Humidity

• Mounting Type: Wall Mounted

• Ambient Relative Humidity (Min): 5% Non-condensing

• Ambient Relative Humidity (Max): 95% Non-condensing

• Power Supply: 2 AAA alkaline batteries,

• For Use With: THX3210WF T10+ Pro Smart thermostat with RedLINK

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	2
Exterior Dimensions (D) (inches)	7.000000
Exterior Dimensions (W) (inches)	7.000000
Exterior Dimensions (H) (inches)	3.000000
Shipping Weight (lbs)	2.000000

Resources

C7189R3002-2_ProductData.pdf

C7189R3002-2_Submittal.pdf
