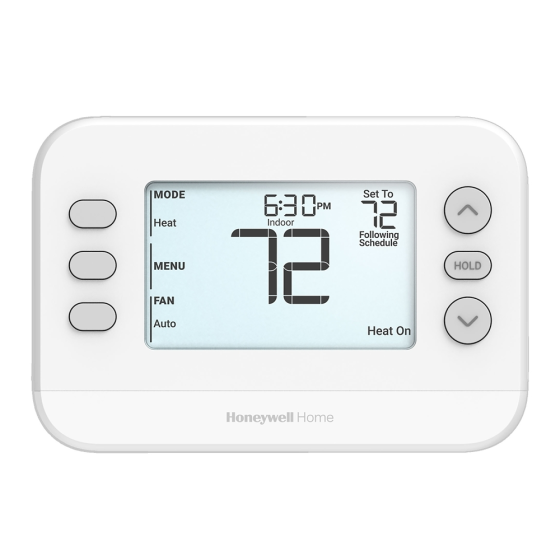

Honeywell® FocusPRO® P200 7/5+1+1/5+2 Day Programmable Thermostat 2H/2C (3H/2C HP), 24Vac/3Vdc (2 AA)

Item
TH2320U4006
  • California Prop 65

FEATURES

The FocusPRO® P200 Programmable Thermostat offers your customers optimized functionality that’s easy to use. Homeowners can customize the FocusPRO® P200 Programmable Thermostat to fit their personal schedules with the user-friendly design, large display, and programmable functionality.

  • • Supports up to 3H/2C heat pump and 2H/2C conventional
  • • UWP® wall plate supports speedy installation and easy upgrade
  • • Private label with customized snap-on accent piece
  • • Flexible scheduling in 5-1-1 day, 5-2 day, 7 day, or 1 week increments, or turn scheduling off
  • • Large display with clear font
  • • Optional always-on backlight when hardwired
  • • Customizable display settings
  • • Intuitive interface for easy navigation
  • • Choose to receive filter reminders
  • • Heat low limit defaults to 40°F (4°C) but configurable to 32°F (0°C) for garage applications
  • • Dual fuel compatible
  • • Wired outdoor sensor compatible
  • • Fan lockout after cool call option
  • • 5-year warranty


  • SPECIFICATIONS

  • • Application: 24 Vac heat + cool systems. Gas, Oil, Electric, or Steam/Radiant hot water Systems. Heat pumps with Auxiliary Heat
  • • Thermostat Type: Programmable, Digital
  • • Stages: Up to 3 Heat/2 Cool Heat Pumps, Up to 2 Heat/2 Cool Conventional Systems
  • • Terminal Designations: RC, R, C, W, W2-AUX, Y, Y2, O/B, G, K, L, E, S, S
  • • Display Type: LCD Screen
  • • Display Size: 4.84 sq. in.
  • • Display Language: English
  • • Displayed Information: Mode, Current Temperature, Set Temperature, Status Display, Fan, Time
  • • Modes of Operation: Heat, Off, Cool, Auto
  • • Program Type: 7-Day Programmable, 5-1-1 Programmable, 5-2 Programmable, 1 Week
  • • Alerts and Reminders: Heat Pump Failure, Memory Error, Sensor Error, Filter Change
  • • Heat-Cool Changeover: Auto or Manual
  • • Power Supply: Battery, Hardwired
  • • Power Source: Hardwired, Battery Operated
  • • Frequency: 60 Hz
  • • Number of Batteries: 2
  • • For Use With: C7089U1006 wired outdoor sensor
  • • Color: White
  • • Ambient Operating Temperature (Max): 120 °F, 49 °C
  • • Ambient Operating Temperature (Min): 32 °F, 0 °C
  • • Differential Temperature: ± 1 °F, ± 0.5 °C
  • • Operating Relative Humidity (Max): 90% RH, non-condensing
  • • Operating Relative Humidity (Min): 5% RH, non-condensing
  • • Temperature Accuracy: 1 °F, 0.5 °C
  • • Electrical Connection Type: UWP Mounting System
  • • Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
  • • Set point Temperature (Min): Heat: 32 °F, Cool: 50 °F, Heat: 0 °C, Cool: 10 °C
  • • Shipping and Storage Temperature (Max): 120 °F, 49 °C
  • • Shipping and Storage Temperature (Min): -20 °F, -29 °C
  • • Switch Type: Relay
  • • Product Height: 3.44 in, 87 mm
  • • Product Width: 5.13 in, 130 mm
  • • Product Depth: 1.188 in , 29.5 mm
  • • Features: Backlit Display , Filter Change Reminder


  • INCLUDES

  • • Thermostat
  • • UWP mounting plate
  • • Decorative cover plate with J-box adaptor
  • • Mounting hardware
  • • AA batteries
  • • Literature
  • Specification
    Stages (Conventional) 2 Heat, 2 Cool
    Stages (Heat Pump) 3 Heat, 2 Cool
    Power Method Hardwire (24Vac)/Battery (3Vdc)
    Program Options (Days) 7, 5+2, 5+1+1
    Display Size 4.8 sq. in.
    WiFi Capability No
    Temporary Hold Yes
    Permanent Hold Yes
    Millivolt Compatible No
    Touchscreen No
    Battery Backup Yes
    Filter Indicator Yes
    Humidification Controls No
    Key Pad Lockout Yes
    Remote Sensing Capability Yes
    Safety Standards
    California Prop 65 Yes
    Weights and Dimensions
    Operating Weight (lbs) 2
    Exterior Dimensions (D) (inches) 7.000000
    Exterior Dimensions (W) (inches) 5.000000
    Exterior Dimensions (H) (inches) 3.000000
    Shipping Weight (lbs) 2.000000
