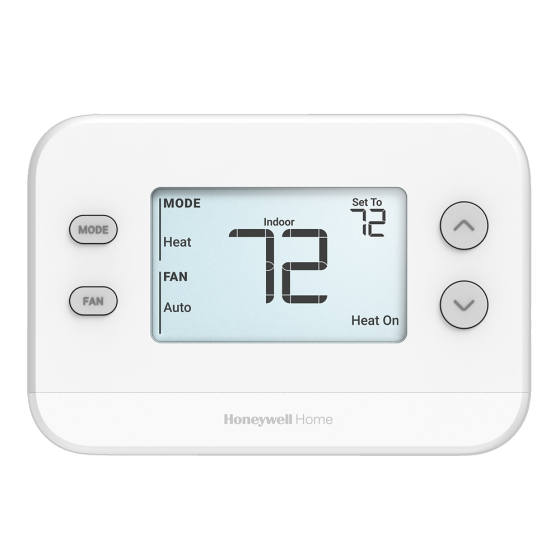

Honeywell® FocusPRO® N100 Non-Programmable Thermostat 2H/2C (3H/2C HP), 24Vac/3Vdc (2 AA)

FEATURES

The Honeywell Home FocusPRO® N100 is designed for pro ease-of-use and profitability. It reduces job complexities and time on-site while supporting recurring business thanks to its broad system compatibility, UWP® wall plate, large display and clear font, snap-on private label, and competitive price.

• Supports up to 3H/2C heat pump and 2H/2C conventional

• UWP® wall plate supports speedy installation and easy upgrade

• Private label with customized snap-on accent piece

• Large display with clear font

• Optional always-on backlight when hardwired

• Customizable display settings

• Intuitive interface for easy navigation

• Choose to receive filter reminders

• Heat low limit defaults to 40°F (4°C) but configurable to 32°F (0°C) for garage applications

• Dual fuel compatible

• Wired outdoor sensor compatible

• Fan lockout after cool call option

• 5-year warranty

SPECIFICATIONS

• Application: 24 Vac heat + cool systems. Gas, Oil, Electric, or Steam/Radiant hot water Systems. Heat pumps with Auxiliary Heat

• Stages: Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 Cool Conventional Systems

• Terminal Designations: R, RC, C, W, O/B, W2-AUX, E, Y, Y2, G, L/A, K, S, and S.

• Display Type: LCD Screen

• Display Size: 4.09 sq. in.

• Display Language: English

• Displayed Information: Mode, Current Temperature, Set Temperature, Status Display, Fan

• Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat

• Program Type: Manual / Not Programmed

• Alerts and Reminders: Battery Replacement, Heat Pump Failure, Memory Error, Sensor Error, Filter Change

• Heat-Cool Changeover: Auto or Manual

• Power Supply: Battery, Hardwired

• Power Source: Hardwired, Battery Operated

• Frequency: 60 Hz

• Number of Batteries: 2

• Battery Type: AA Alkaline

• Includes: Thermostat, UWP mounting plate, Decorative cover plate with J-box adaptor, Mounting hardware, AA batteries, Literature

• For Use With: C7089U1006 wired outdoor sensor

• Color: White

• Ambient Operating Temperature (Max): 120 °F, 49 °C

• Ambient Operating Temperature (Min): 32 °F, 0 °C

• Differential Temperature: ± 1 °F, ± 0.5 °C

• Operating Relative Humidity (Max): 90% RH, non-condensing

• Operating Relative Humidity (Min): 5% RH, non-condensing

• Temperature Accuracy: 1 °F, 0.5 °C

• Electrical Connection Type: UWP Mounting System

• Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C

• Set point Temperature (Min): Heat: 32 °F, Cool: 50 °F, Heat: 0 °C, Cool: 10 °C

• Switch Type: Relay

• Product Height: 3.44 in, 87 mm

• Product Width: 5.13 in, 130 mm

• Product Depth: 1.188 in , 29.5 mm

• Features: Backlit Display , Filter Change Reminder

INCLUDES

• FocusPRO N100 Series Thermostat

• UWP™ Wall Plate

• Decorative Cover Plate with J-Box Adapter

• Screws and Anchors

• 2 AA Batteries

• Thermostat Literature

Specifications

Specification
Stages (Conventional)	2 Heat, 2 Cool
Stages (Heat Pump)	3 Heat, 2 Cool
Power Method	Hardwire (24Vac)/Battery (3Vdc)
Display Size	4 sq. in.
WiFi Capability	No
Temporary Hold	No
Permanent Hold	No
Millivolt Compatible	Yes
Touchscreen	No
Battery Backup	Yes
Filter Indicator	Yes
Humidification Controls	No
Key Pad Lockout	No
Remote Sensing Capability	No

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	2
Exterior Dimensions (D) (inches)	7.000000
Exterior Dimensions (W) (inches)	5.000000
Exterior Dimensions (H) (inches)	3.000000
Shipping Weight (lbs)	2.000000
