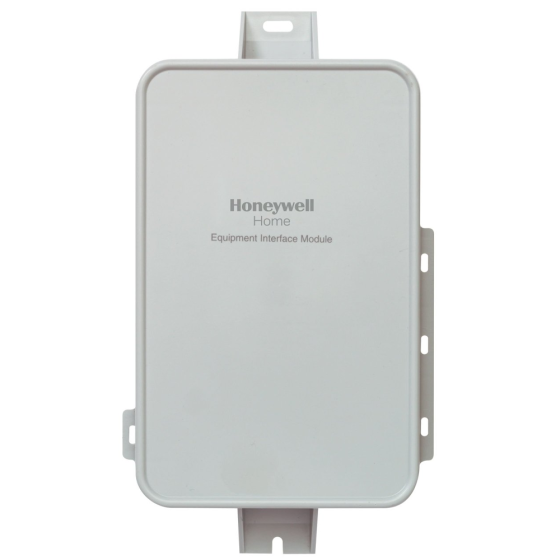

Honeywell Home Equipment Interface Module for T10+

Item

THM04R3000

FEATURES

Upgrade to multistage without running new wires, control humidifier, dehumidifier, and ventilator, dry contact alerts and lockouts.

• Application: 24 Vac systems, Up to 3H/2C heat pump, Up to 2H/2C conventional

• Approvals and Standards: FCC: 47 CFR § 15.19 (a)(3), 47 CFR § 15.21 (USA only), 47 CFR § 15.105 (b), IC REGULATIONS: RSS-GEN

• Wiring Terminals: R, Rc, Rh, C, W1, W2-AUX1, W3-AUX2, O/B, Y1, Y2, S1-S4 (2 each), U1-U3 (2 each), L

• Product Height: 9.31 in, 91 mm

• Product Length: 1.59 in, 42 mm

• Product Width: 4.81 in, 147 mm

• Color: Gray

• Ambient Operating Temperature (Max): 165 °F, 74 °C

• Ambient Operating Temperature (Min): -40 °F, -40 °C

• Connection Type: Screw Terminals

• Electrical Ratings: 20 to 30 Vac

• For Use With: T10+

• Number of LEDs: 2

• Equipment Interface Module (EIM)

• Mounting Hardware

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	2
Exterior Dimensions (D) (inches)	3.000000
Exterior Dimensions (W) (inches)	5.000000
Exterior Dimensions (H) (inches)	10.000000
Shipping Weight (lbs)	2.000000
