The TATTOO Condensate Pump is an ultra-quiet, high-performance solution for condensate removal, operating at less than 19 dB for near-silent operation. It features built-in rubber absorbers, a factory-installed check valve, and a pre-wired alarm contact for easy integration. With a vertical lift of up to 25 feet and the ability to be installed up to 5 feet from the detection unit, this pump offers versatile installation options. It is designed to handle systems up to 54,000 BTU and offers thermal security up to 230°F (110°C). Engineered to rigid quality standards, it ensures reliable, efficient operation while maintaining ease of installation and long-lasting performance.
• Near silent – Less than 19 dB noise rating with built-in rubber absorbers
• Pre-wired alarm contact
• Factory-installed check valve
• Normally open/normally closed alarm 100V to 240V/8A
• Up to 25’ vertical lift
• Can be installed up to 5’ from detection unit in any position
• Thermal security of 230°F (110°C)
• Rigid Swiss quality standards – Engineered, manufactured and tested
• For systems up to 54,000 BT
SPECIFICATIONS
• Max. Flow Rate: 4.3 GPH
• Flow Rate at 3′: 3.8 GPH
• Flow Rate at 10′: 2.8 GPH
• Max. Dry Suction Height: 3.3′
• Max. Wet Suction Height: 6.6′
• Max. Delivery Height: 29.5′
• Alarm Contact: NO/NC-120V / 8A
• Pump Dimensions (L/W/H): 5.9 x 2.2 x 1.1”
• Sensor Dimensions (L/W/H): 3.2 x 1.6 x 1.6”
• Weight
• Power Supply: 230V
• Sound Levels: As low as 19 dBA

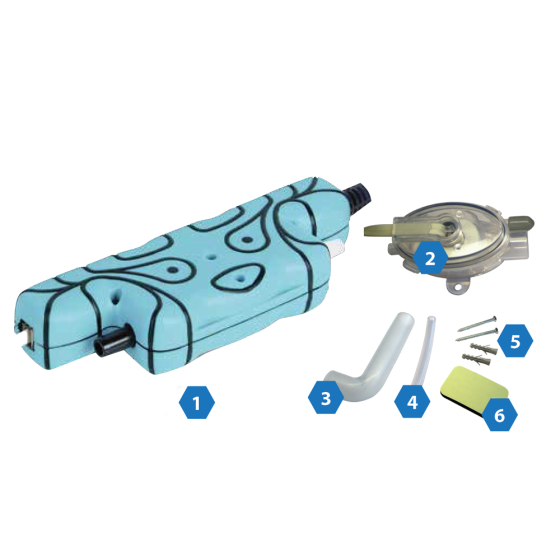

INCLUDES
• TATTOO Pump Body
• Plug & Play Detection Unit; 5’ Communication Wire Included
