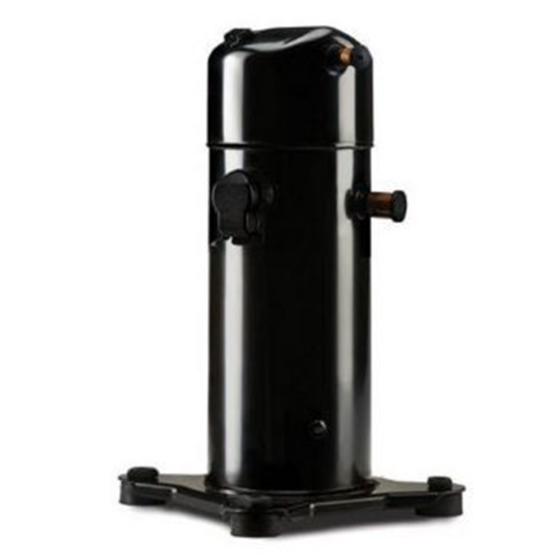

LG Hermetic Scroll Compressor R410A, 23,500BTU, 208/230Vac, Single Phase
Item
APG024KAB
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 23,500
• Refrigerant: R410A
• Connection Type: Molded Plug (Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 40/370µF
• MCC: 17
• LRA: 63
• RLA: 10.9
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 10.35"
• Discharge Line Size: 1/2"
• Discharge Line Height: 14.25"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 10.9 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 21 to 25kBTU | Suction Line Height | 10.37" | Discharge Line Height | 14.26" | Discharge Line Size | 1/2" | Oil | POE (Polyester) |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 18 | Exterior Dimensions (D) (inches) | 11.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 33.000000 | Shipping Weight (lbs) | 18.000000 |
