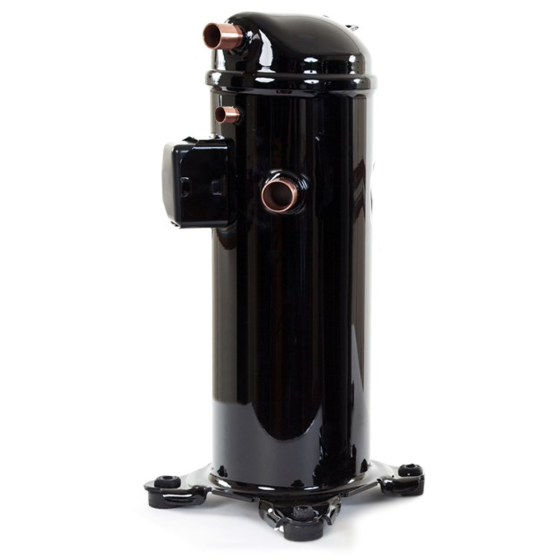

Danfoss Hermetic Scroll Compressor R410A, 95,300BTU, 208/230Vac, Three Phase
Item
ECH087T2LC2
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 95,300
• Refrigerant: R410A
• Connection Type: Screw Terminals
• Oil: PVE (Polyvinyl)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• RLA: 28.2
• Hertz: 60
• Suction Line Size: 1-1/8"
• Suction Line Height: 14.7"
• Discharge Line Size: 7/8"
• Discharge Line Height: 20.6"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 28.2 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 91 to 110kBTU | Oil | POE (Polyester) | Suction Line Height | 14.7" | Discharge Line Height | 20.6" | Discharge Line Size | 7/8" | Compressor Type | Scroll | Refrigerant | R-410A |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 110 | Exterior Dimensions (D) (inches) | 11.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 23.000000 | Shipping Weight (lbs) | 110.000000 |
