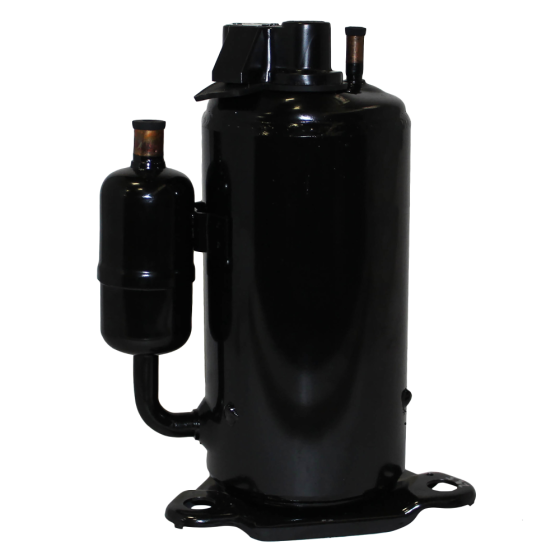

Totaline® Hermetic Rotary Compressor R22, 15,500BTU, 208/230Vac, Single Phase
Item
P0311523
FEATURES & BENEFITS
• Compressor Type: Rotary• BTU Rating: 15,500
• Refrigerant: R22
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 25/370µF
• Hertz: 60
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 6.4 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 11 to 15kBTU | Suction Line Height | 9.2" | Discharge Line Height | 11.3 | Discharge Line Size | 5/16" | Compressor Type | Rotary | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 50 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 10.000000 | Exterior Dimensions (H) (inches) | 10.000000 | Shipping Weight (lbs) | 50.000000 |
