Electric Heater Kit - Small Packaged Unit, 5kW @ 240Vac, 1 Phase (Terminal Block)

PRODUCT DETAILS

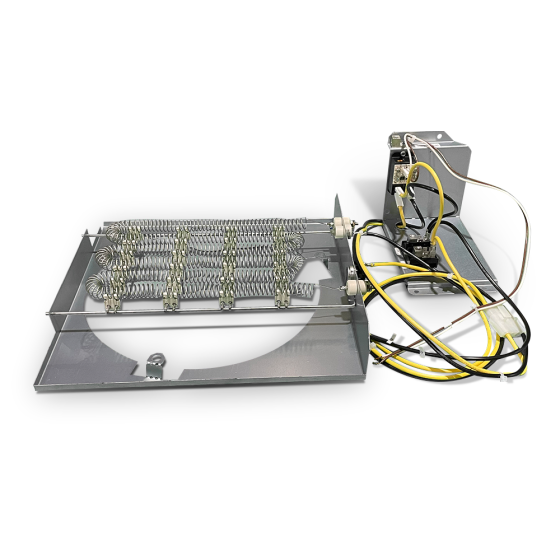

This heater is comprised of a separate heater module mounted on the blower inlet and remote mounted controls located in the unit control box. Heater models are provided with single point electrical connections for powering both the heater and the unit.

These heaters are intended for use only in SPP units as noted below:

50ZPB, C, D, 50ZHB, C, PA3Z-A, PH3Z-A, PA4Z, PH4Z, PAJ4, PHJ4, WJA4, WJH4.

FEATURES & BENEFITS

• Kilowatt Rating: 3.75kW @ 208Vac, 5kW @ 240Vac
• Voltage: 208/230Vac
• Amperage: 18.0A @ 208Vac, 20.8A @ 240Vac
• 1 Phase

INCLUDES

• Heater assembly, comprised of heater module and control panel
• UPC heater label
• Installation Instructions
• Identification label
• Wiring label
• Wire connectors (QTY 2)
• Wire tires-6” (QTY 5)
• Screws #10B (QTY 4)
• Ground lug
• Bolts 3/8-16 (QTY 3)
• Plug attachment plate
• Dual Point Electric Rating Label
• Dual Point Warning Label
