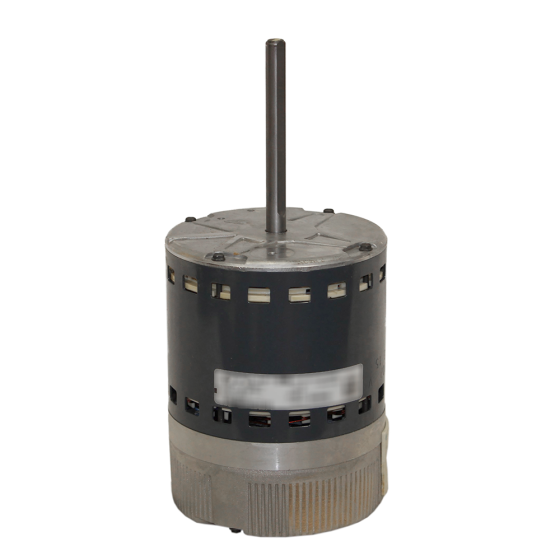

Direct Drive Blower Motor 3/4HP, 1050RPM, 120/240Vac, 9.6/6.8A, (ECM)
Item
HD46AE122
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
Specification | |
---|---|
Bearing Type | Ball | Motor Frame | 39 | Motor HP | 3/4 | Motor Type | ECM | Rotation | CCW LE | RPM | 1050 | Shaft Diameter | 0.50 | Shaft Length | 4.75 |
Electrical | |
---|---|
Amps | 9.6 | Hertz | 60 | Voltage | 120/240 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 16.15 | Exterior Dimensions (D) (inches) | 5.400000 | Exterior Dimensions (W) (inches) | 5.400000 | Exterior Dimensions (H) (inches) | 11.900000 | Shipping Weight (lbs) | 16.950000 |
Warranty | |
---|---|
Country of Origin | China | Parts Warranty | 1 Year |
