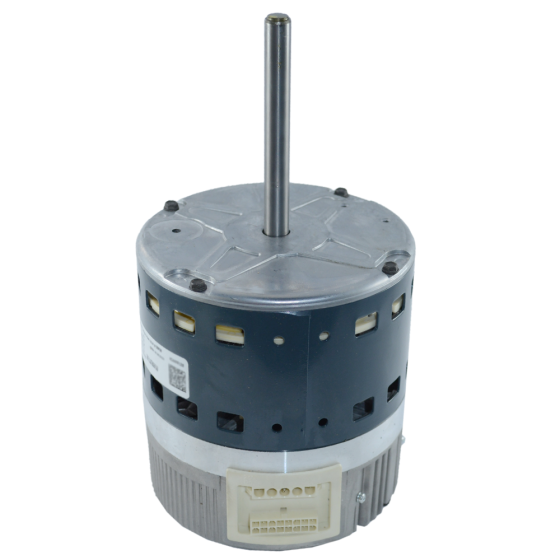

Direct Drive Blower Motor 1/2HP, 1050RPM, 120/240Vac, 7.7/4.3A, (ECM)
Item
HD44AR120
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Electronically Commutated Motor (ECM)
• Horsepower: 1/2
• RPM: 1050
• Rotation: Reversible
• Voltage: 115/230Vac
• Amperage: 7.7/4.3
• 1 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
| Specification | |
|---|---|
| Motor HP | 1/2 | Motor Type | ECM | Rotation | CCW LE | RPM | 1050 |
| Electrical | |
|---|---|
| Amps | 7.7 | Hertz | 60 | Voltage | 120/240 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 10.25 | Exterior Dimensions (D) (inches) | 5.300000 | Exterior Dimensions (W) (inches) | 5.400000 | Exterior Dimensions (H) (inches) | 9.900000 | Shipping Weight (lbs) | 11.300000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico | Parts Warranty | 1 Year |
