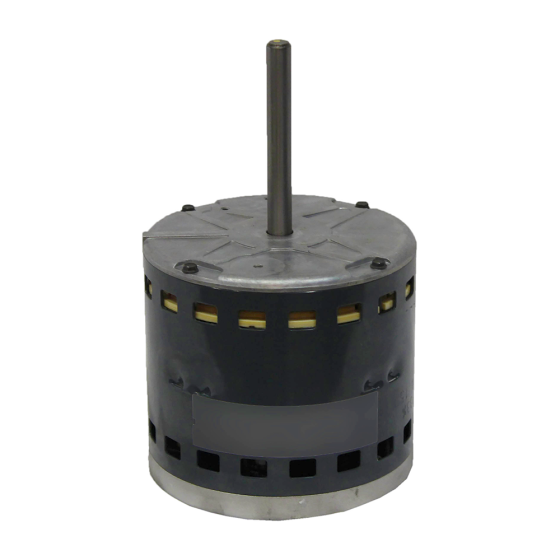

Direct Drive Blower Motor 1/3HP, 1050RPM, 208/230Vac, 2.8A, (ECM)
Item
HD42AR225
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
Specification | |
---|---|
Motor HP | 1/3 | Motor Type | ECM | Rotation | CCW LE | RPM | 1050 |
Electrical | |
---|---|
Amps | 2.8 | Hertz | 60 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 9.35 | Exterior Dimensions (D) (inches) | 5.400000 | Exterior Dimensions (W) (inches) | 5.400000 | Exterior Dimensions (H) (inches) | 9.100000 | Shipping Weight (lbs) | 10.000000 |
Warranty | |
---|---|
Country of Origin | Mexico |
