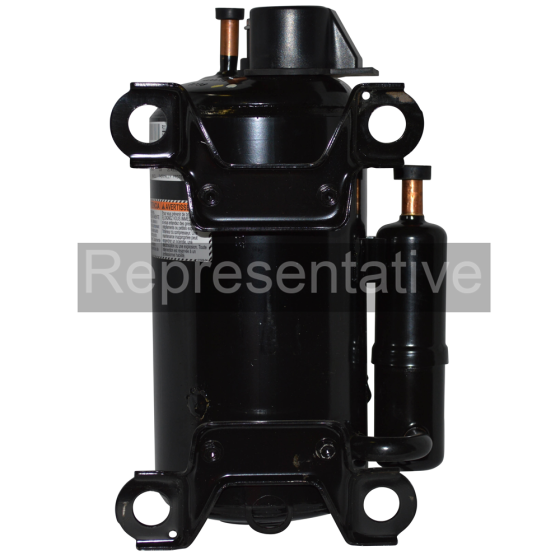

Danfoss Hermetic Scroll Compressor R22, 94,517BTU, 460Vac, Three Phase
Item
HCM094T4LC2A
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 13.5 | Voltage | 460 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 91 to 110kBTU | Suction Line Height | 14.5" | Discharge Line Height | 20" | Discharge Line Size | 7/8" | Oil | AB (Alkylbenzene) | BTU Output | 95000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 71 | Exterior Dimensions (D) (inches) | 10.500000 | Exterior Dimensions (W) (inches) | 11.500000 | Exterior Dimensions (H) (inches) | 22.500000 | Shipping Weight (lbs) | 71.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
