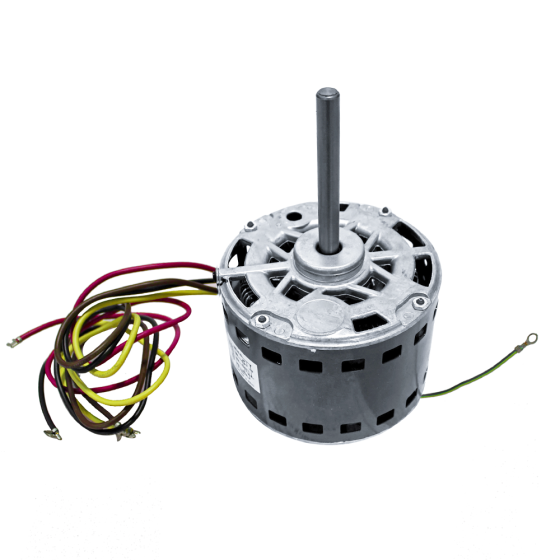

Direct Drive Blower Motor 1/3HP, 1075RPM, 208/230Vac, 1.7A, 10µF/370Vac, 2 Speed, (PSC)
Item
HC680058
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Motor HP | 1/3 | Motor Type | PSC | Number of Speeds | 2 | Rotation | CCW LE | RPM | 1075 |
| Electrical | |
|---|---|
| Amps | 1.7 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 10.9 | Exterior Dimensions (D) (inches) | 5.750000 | Exterior Dimensions (W) (inches) | 5.750000 | Exterior Dimensions (H) (inches) | 9.000000 | Shipping Weight (lbs) | 11.850000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico | Parts Warranty | 1 Year |
