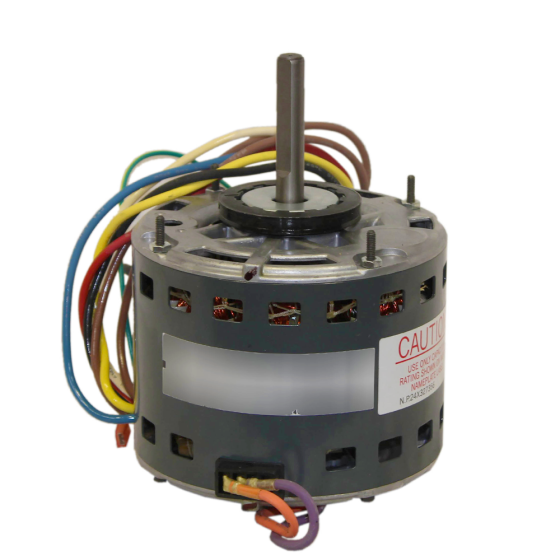

Direct Drive Blower Motor 1/3HP, 1075RPM, 115Vac, 4.3A, 7.5µF/370Vac, 4 Speed, (PSC)
Item
HC680004
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Motor HP | 1/3 | Motor Type | PSC | Number of Speeds | 4 | RPM | 1075 |
| Electrical | |
|---|---|
| Amps | 4.3 | Hertz | 60 | Voltage | 115 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 19.8 | Exterior Dimensions (D) (inches) | 6.200000 | Exterior Dimensions (W) (inches) | 5.600000 | Exterior Dimensions (H) (inches) | 7.900000 | Shipping Weight (lbs) | 20.250000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico | Parts Warranty | 1 Year |
