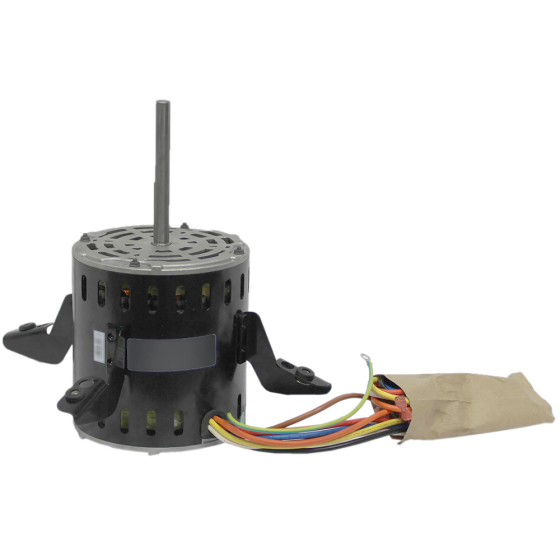

Direct Drive Blower Motor 1HP, 1075RPM, 115Vac, 14.2A, 35µF/370Vac, 5 Speed, 60 °C, (PSC)
Item
HC52TQ145
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 48Y | Motor HP | 1 | Motor Type | PSC | Number of Speeds | 5 | Rotation | CCW LE | RPM | 1075 | Shaft Diameter | 0.50 | Shaft Length | 4.54 |
| Electrical | |
|---|---|
| Amps | 14.2 | Hertz | 60 | Voltage | 115 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 20.85 | Exterior Dimensions (D) (inches) | 8.400000 | Exterior Dimensions (W) (inches) | 8.400000 | Exterior Dimensions (H) (inches) | 10.400000 | Shipping Weight (lbs) | 21.000000 |
| Warranty | |
|---|---|
| Parts Warranty | 1 Year |
