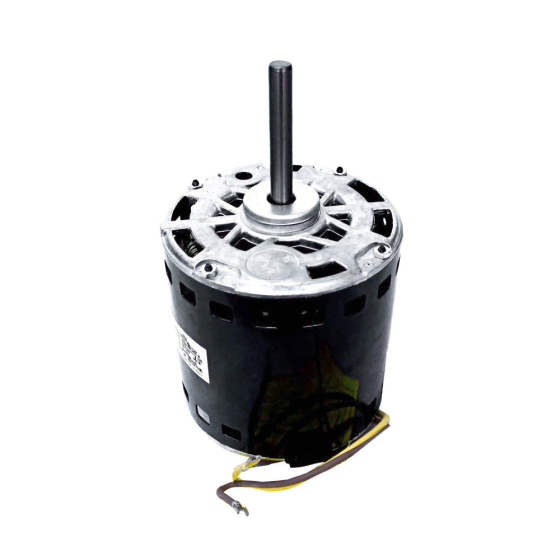

Direct Drive Blower Motor 1HP, 1040/1000RPM, 460Vac, 3.00A, 15µF/370Vac, 2 Speed, (PSC)
Item
HC52SL461
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
Specification | |
---|---|
Bearing Type | Ball | Motor Frame | 39 | Motor HP | 1 | Motor Type | PSC | Number of Speeds | 2 | Rotation | CCW LE | RPM | 1040 | Shaft Diameter | 0.50 | Shaft Length | 3.00 |
Electrical | |
---|---|
Amps | 3 | Hertz | 60 | Voltage | 460 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 17.4 | Exterior Dimensions (D) (inches) | 5.750000 | Exterior Dimensions (W) (inches) | 6.250000 | Exterior Dimensions (H) (inches) | 9.750000 | Shipping Weight (lbs) | 18.400000 |
Warranty | |
---|---|
Country of Origin | Mexico | Parts Warranty | 1 Year |
