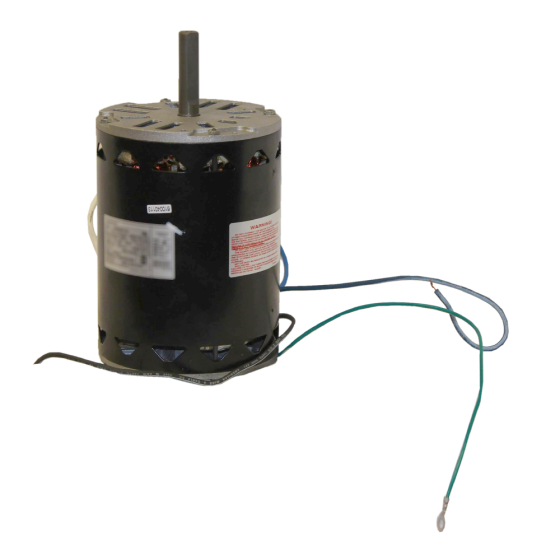

Direct Drive Blower Motor 1HP, 1000RPM, 460Vac, 25µF/370Vac, (PSC)
Item
HC52AL461
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1
• RPM: 1000
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 460Vac
• Capacitor: 25µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Shaft Size: 0.62 x 2.5
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 48 | Motor HP | 1 | Motor Type | PSC | Rotation | CCW LE | RPM | 1000 | Shaft Diameter | 0.62 | Shaft Length | 2.5 |
| Electrical | |
|---|---|
| Hertz | 60 | Voltage | 460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 34.85 | Exterior Dimensions (D) (inches) | 6.100000 | Exterior Dimensions (W) (inches) | 5.700000 | Exterior Dimensions (H) (inches) | 10.300000 | Shipping Weight (lbs) | 35.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico | Parts Warranty | 1 Year |
