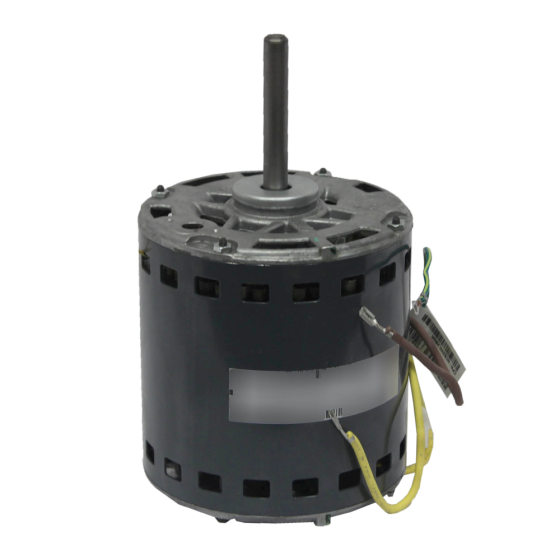

Direct Drive Blower Motor 1HP, 1040RPM, 208/230Vac, 5.9A, 25µF/370Vac, 2 Speed, (PSC)
Item
HC52AE208
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1
• RPM: 1040
• Number of Speeds: 2
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 208/230Vac
• Amperage: 5.9
• Capacitor: 25µF/370Vac
• 1 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
Specification | |
---|---|
Motor HP | 1 | Motor Type | PSC | Number of Speeds | 2 | Rotation | CCW LE | RPM | 1040 |
Electrical | |
---|---|
Amps | 5.9 | Hertz | 60 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 26.5 | Exterior Dimensions (D) (inches) | 5.700000 | Exterior Dimensions (W) (inches) | 5.700000 | Exterior Dimensions (H) (inches) | 10.100000 | Shipping Weight (lbs) | 27.450000 |
Warranty | |
---|---|
Country of Origin | Mexico | Parts Warranty | 1 Year |
