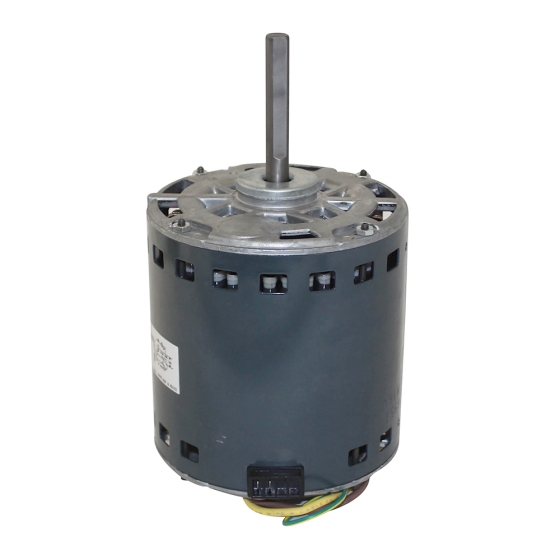

Direct Drive Blower Motor 3/4HP, 1100RPM, 208/230Vac, 4.4A, 15µF/370Vac, 2 Speed, 60 °C, (PSC)
Item
HC51SE230
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
Specification | |
---|---|
Bearing Type | Ball | Motor Frame | 48 | Motor HP | 3/4 | Motor Type | PSC | Number of Speeds | 2 | Rotation | CCW LE | RPM | 1100 | Shaft Diameter | 0.50 | Shaft Length | 3.00 |
Electrical | |
---|---|
Amps | 4.4 | Hertz | 60 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 32.7 | Exterior Dimensions (D) (inches) | 19.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 7.800000 | Shipping Weight (lbs) | 53.000000 |
Warranty | |
---|---|
Country of Origin | Mexico | Parts Warranty | 1 Year |
