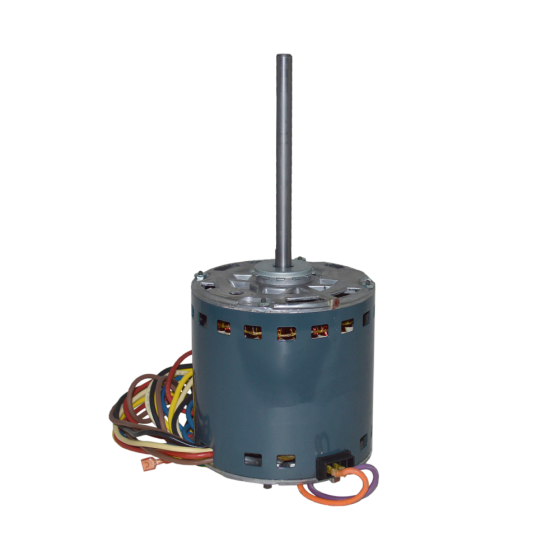

Direct Drive Blower Motor 3/4HP, 1075RPM, 115Vac, (PSC)
Item
HC45SE116
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 3/4
• RPM: 1075
• Voltage: 115Vac
SUPERSEDES FROM
• HC43SE115
• 51SGB0603161
• 58CH680072
• 58SGB060316
• B0603161
• HC45SA114
• HC45680001
• 58ES680021
• HC45MA115
• 58ES680019
• HC46S0115
• P251-2201
| Specification | |
|---|---|
| Motor HP | 3/4 | Motor Type | PSC | RPM | 1075 |
| Electrical | |
|---|---|
| Voltage | 115 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 21.73 | Exterior Dimensions (D) (inches) | 6.770000 | Exterior Dimensions (W) (inches) | 17.800000 | Exterior Dimensions (H) (inches) | 7.090000 | Shipping Weight (lbs) | 21.730000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico | Parts Warranty | 1 Year |
