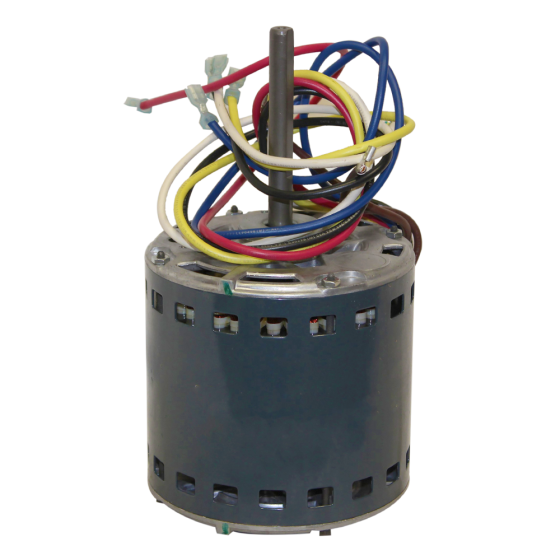

Direct Drive Blower Motor 3/4HP, 1075RPM, 115Vac, 11.1A, 10µF/370Vac, 4 Speed, (PSC)
Item
HC45AE118
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
Specification | |
---|---|
Bearing Type | Sleeve | Motor Frame | 39 | Motor HP | 3/4 | Motor Type | PSC | Number of Speeds | 4 | Rotation | CCW LE | RPM | 1075 | Shaft Diameter | 0.50 |
Electrical | |
---|---|
Amps | 11.1 | Hertz | 60 | Voltage | 115 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 20 | Exterior Dimensions (D) (inches) | 12.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 20.000000 |
Warranty | |
---|---|
Country of Origin | Mexico | Parts Warranty | 1 Year |
