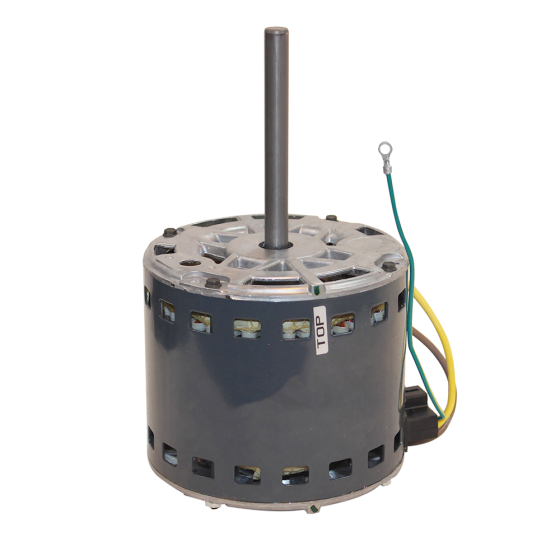

Direct Drive Blower Motor 1/3HP, 855RPM, 460Vac, 1.2A, 10µF/370Vac, 2 Speed, (PSC)
Item
HC44AA460
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/3
• RPM: 855
• Number of Speeds: 2
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 460Vac
• Amperage: 1.2
• Capacitor: 10µF/370Vac
• 1 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
Specification | |
---|---|
Motor HP | 1/3 | Motor Type | PSC | Number of Speeds | 2 | Rotation | CCW LE | RPM | 855 |
Electrical | |
---|---|
Amps | 1.2 | Hertz | 60 | Voltage | 460 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 13.1396 | Exterior Dimensions (D) (inches) | 5.500000 | Exterior Dimensions (W) (inches) | 5.600000 | Exterior Dimensions (H) (inches) | 9.200000 | Shipping Weight (lbs) | 14.109600 |
Warranty | |
---|---|
Country of Origin | Mexico | Parts Warranty | 1 Year |
