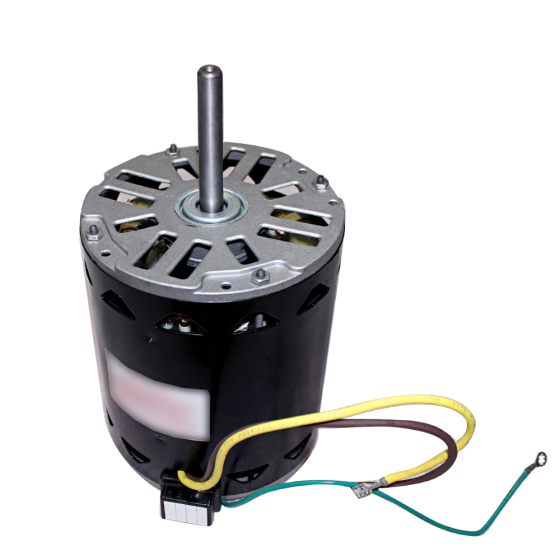

Direct Drive Blower Motor 1/2HP, 1015RPM, 460Vac, 10µF/440Vac, 3 Speed, (PSC)
Item
HC43SE463
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
Specification | |
---|---|
Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/2 | Motor Type | PSC | Number of Speeds | 3 | Rotation | CW LE | RPM | 1015 | Shaft Diameter | 0.50 | Shaft Length | 3.00 |
Electrical | |
---|---|
Hertz | 60 | Voltage | 460 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 19.55 | Exterior Dimensions (D) (inches) | 6.250000 | Exterior Dimensions (W) (inches) | 5.500000 | Exterior Dimensions (H) (inches) | 10.000000 | Shipping Weight (lbs) | 20.350000 |
Warranty | |
---|---|
Country of Origin | Mexico | Parts Warranty | 1 Year |
