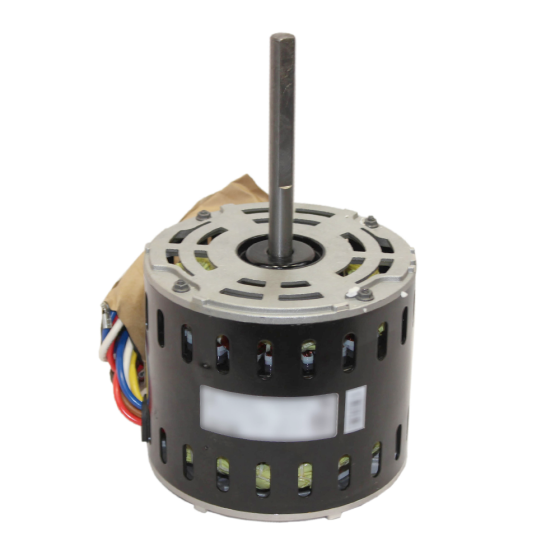

Direct Drive Blower Motor 1/2HP, 1075RPM, 115Vac, 7.5A, 10µF/370Vac, 4 Speed, (PSC)
Item
HC43AQ116
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/2 | Motor Type | PSC | Number of Speeds | 4 | Rotation | CCW LE | RPM | 1075 | Shaft Diameter | 0.50 | Shaft Length | 4.60 |
| Electrical | |
|---|---|
| Amps | 7.5 | Hertz | 60 | Voltage | 115 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 13.4 | Exterior Dimensions (D) (inches) | 5.400000 | Exterior Dimensions (W) (inches) | 6.700000 | Exterior Dimensions (H) (inches) | 10.000000 | Shipping Weight (lbs) | 14.300000 |
| Warranty | |
|---|---|
| Country of Origin | China | Parts Warranty | 1 Year |
