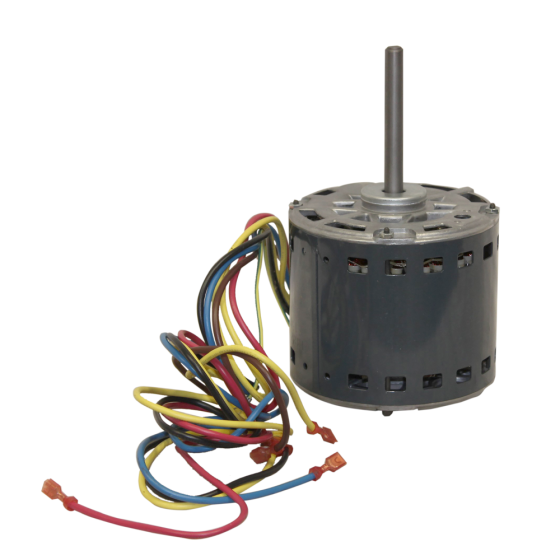

Direct Drive Blower Motor 1/2HP, 1075RPM, 208/230Vac, 3.6A, 15µF/370Vac, 3 Speed, (PSC)

Item
HC43AE233
  • California Prop 65

FACTORY AUTHORIZED PART BENEFITS

• Meets exact part design life testing for maximum reliability and durability.
• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/2
• RPM: 1075
• Number of Speeds: 3
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 208/230Vac
• Amperage: 3.6
• Capacitor: 15µF/370Vac
• 1 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B

Specification
Motor HP 1/2
Motor Type PSC
Number of Speeds 3
Rotation CCW LE
RPM 1075
Electrical
Amps 3.6
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 22.65
Exterior Dimensions (D) (inches) 6.000000
Exterior Dimensions (W) (inches) 6.000000
Exterior Dimensions (H) (inches) 9.800000
Shipping Weight (lbs) 23.550000
Warranty
Country of Origin Mexico
Parts Warranty 1 Year
