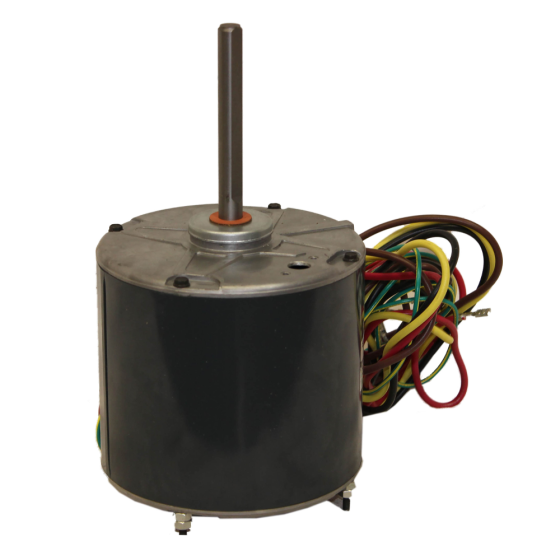

Condenser Fan Motor 1/3HP, 1075RPM, 208/230Vac, 10µF/370Vac, 2 Speed, (PSC)
Item
HC41GE231
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/3
• RPM: 1075
• Number of Speeds: 2
• Rotation: Clockwise (Lead End)
• Voltage: 208/230Vac
• Capacitor: 10µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Shaft Size: 0.50 x 4.0
SUPERSEDES FROM
• HC39VE211
• HC41GE233
• P251-5316
| Specification | |
|---|---|
| Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/3 | Motor Type | PSC | Number of Speeds | 2 | Rotation | CW LE | RPM | 1075 | Shaft Diameter | 0.50 |
| Electrical | |
|---|---|
| Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 23.2 | Exterior Dimensions (D) (inches) | 5.700000 | Exterior Dimensions (W) (inches) | 5.700000 | Exterior Dimensions (H) (inches) | 10.300000 | Shipping Weight (lbs) | 23.500000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
