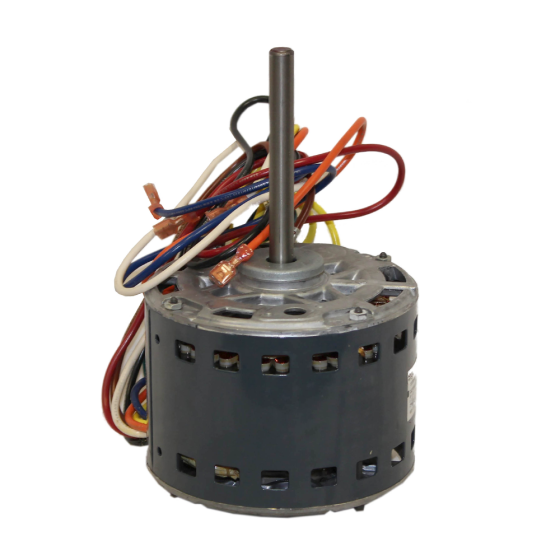

Direct Drive Blower Motor 1/3HP, 1075RPM, 115Vac, 5.1A, 5µF/370Vac, 5 Speed, (PSC)
Item
HC41AE118
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/3
• RPM: 1075
• Number of Speeds: 5
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 115Vac
• Amperage: 5.1
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 0.50 x 4.25
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 48 | Motor HP | 1/3 | Motor Type | PSC | Number of Speeds | 5 | Rotation | CCW LE | RPM | 1075 | Shaft Diameter | 0.50 | Shaft Length | 4.25 |
| Electrical | |
|---|---|
| Amps | 5.1 | Hertz | 60 | Voltage | 115 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 10.85 | Exterior Dimensions (D) (inches) | 5.650000 | Exterior Dimensions (W) (inches) | 5.650000 | Exterior Dimensions (H) (inches) | 9.100000 | Shipping Weight (lbs) | 11.550000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico | Parts Warranty | 1 Year |
