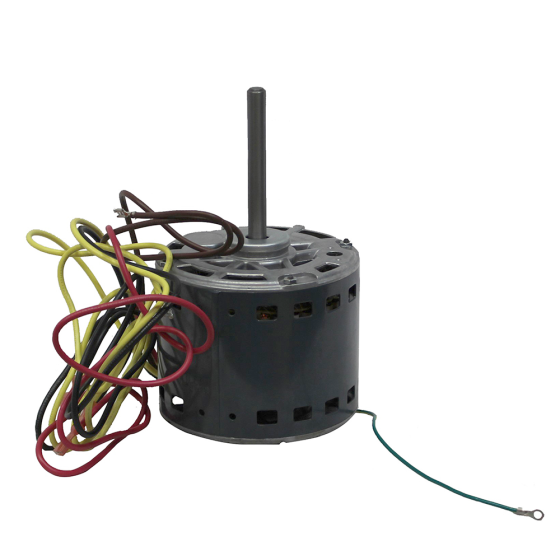

Direct Drive Blower Motor 1/4HP, 825RPM, 208/230Vac, 1.8A, 10µF/370Vac, 2 Speed, (PSC)
Item
HC39AE210
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/4
• RPM: 825
• Number of Speeds: 2
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 208/230Vac
• Amperage: 1.8
• Capacitor: 10µF/370Vac
• 1 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
Specification | |
---|---|
Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/4 | Motor Type | PSC | Number of Speeds | 2 | Rotation | CCW LE | RPM | 825 |
Electrical | |
---|---|
Amps | 1.8 | FLA | 1.8 | Hertz | 60 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 19.55 | Exterior Dimensions (D) (inches) | 6.200000 | Exterior Dimensions (W) (inches) | 6.400000 | Exterior Dimensions (H) (inches) | 9.800000 | Shipping Weight (lbs) | 20.500000 |
Warranty | |
---|---|
Country of Origin | Mexico | Parts Warranty | 1 Year |
