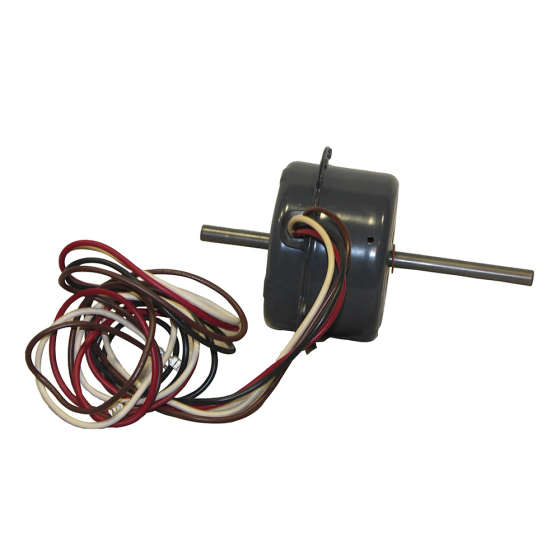

Double Shaft Direct Drive Blower Motor 1/8HP, 1400/1150RPM, 208/230Vac, 0.75A, 5µF/370Vac, 2 Speed, (PSC)
Item
HC37GE238
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
Specification | |
---|---|
Bearing Type | Ball | Motor Frame | 29 | Motor HP | 1/8 | Motor Type | PSC | Number of Speeds | 2 | Rotation | CW LE | RPM | 1400 | Shaft Diameter | 0.50 | Shaft Length | 4.10 x 2.1 |
Electrical | |
---|---|
Amps | 0.75 | Hertz | 60 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 7.85 | Exterior Dimensions (D) (inches) | 5.900000 | Exterior Dimensions (W) (inches) | 5.900000 | Exterior Dimensions (H) (inches) | 9.900000 | Shipping Weight (lbs) | 8.700000 |
Warranty | |
---|---|
Country of Origin | Mexico | Parts Warranty | 1 Year |
