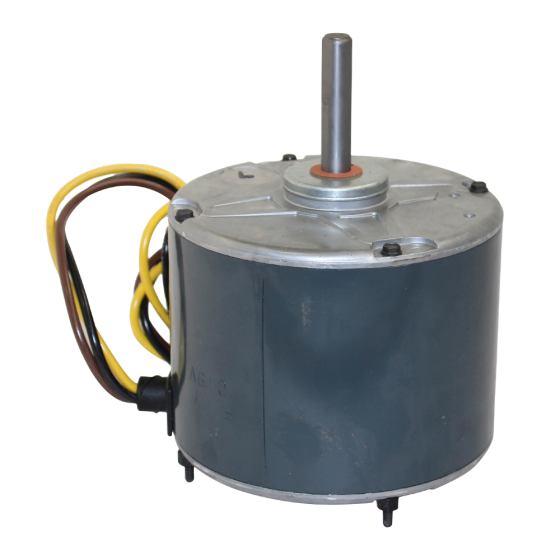

Condenser Fan Motor 1/5HP, 810RPM, 208/230Vac, 1.20A, 5µF/370Vac, 1 Speed, (PSC)

Item
HC37GE228
  • California Prop 65

FACTORY AUTHORIZED PART BENEFITS

• Meets exact part design life testing for maximum reliability and durability.
• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/5
• RPM: 810
• Number of Speeds: 1
• Rotation: Clockwise
• Voltage: 208/230Vac
• Amperage: 1.20
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B

SUPERSEDES FROM

• HB37GQ228
• HC37GQ228

Specification
Motor HP 1/5
Motor Type PSC
Number of Speeds 1
Rotation CW
RPM 810
Electrical
Amps 1.2
FLA 1.2
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 20
Exterior Dimensions (D) (inches) 7.210000
Exterior Dimensions (W) (inches) 5.625000
Exterior Dimensions (H) (inches) 5.625000
Shipping Weight (lbs) 20.000000
