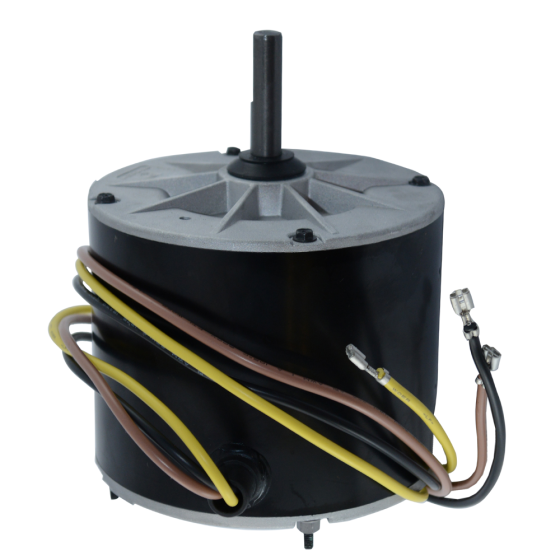

HB37GQ228 Condenser Fan Motor 1/6-1/5hp 810rpm 208/230v 1.05a 5/370cap (SS OBS)
Item
HB37GQ228
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Motor Frame | 48 | Motor HP | 1/6 - 1/5 | Motor Type | PSC | Number of Speeds | 1 | RPM | 810 |
| Electrical | |
|---|---|
| FLA | 1.05 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 7.3 | Exterior Dimensions (D) (inches) | 14.700000 | Exterior Dimensions (W) (inches) | 20.750000 | Exterior Dimensions (H) (inches) | 7.600000 | Shipping Weight (lbs) | 7.300000 |
| Warranty | |
|---|---|
| Country of Origin | China |
