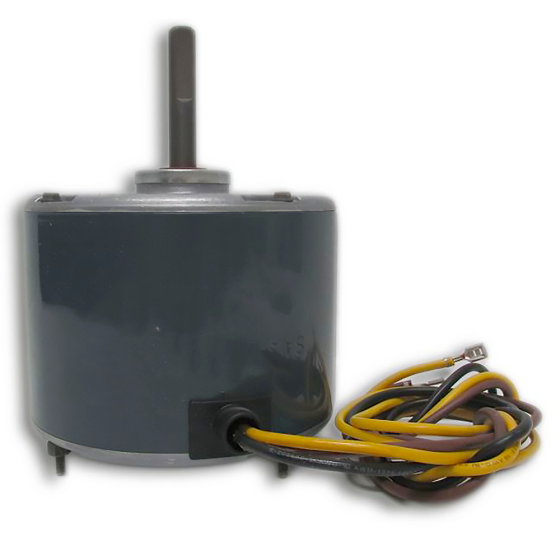

Condenser Fan Motor 1/10HP, 1100RPM, 208/230Vac, 0.75A, 5µF/370Vac, 1 Speed, (PSC)

Item
HB33GR236
  • California Prop 65

FACTORY AUTHORIZED PART BENEFITS

• Meets exact part design life testing for maximum reliability and durability.
• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/10
• RPM: 1100
• Number of Speeds: 1
• Rotation: Clockwise
• Voltage: 208/230Vac
• Amperage: 0.75
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 39
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 0.50 x 2.50

SUPERSEDES TO

• HB33GQ231

SUPERSEDES FROM

• HC33GE236

Specification
Bearing Type Sleeve
Motor Frame 39
Motor HP 1/10
Motor Type PSC
Number of Speeds 1
Rotation CW
RPM 1100
Shaft Diameter 0.50
Shaft Length 2.50
Electrical
Amps 0.75
FLA 0.75
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 7.1
Exterior Dimensions (D) (inches) 14.700000
Exterior Dimensions (W) (inches) 8.500000
Exterior Dimensions (H) (inches) 6.500000
Shipping Weight (lbs) 7.100000
Warranty
Country of Origin India
