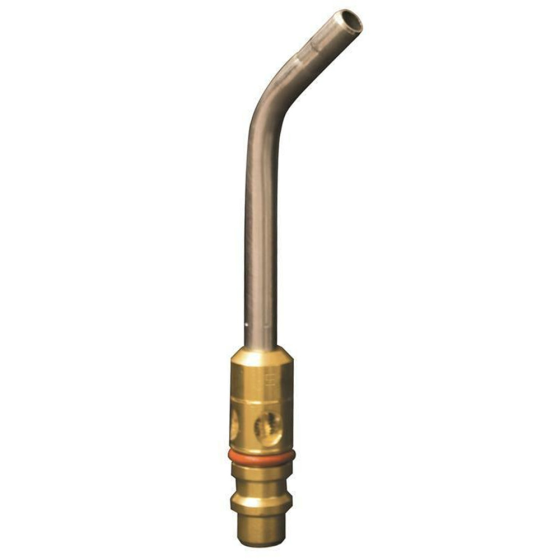

Harris® HA-8i Inferno® Quick Connect Swirl Heating Tip 3/8"

APPLICATIONS

Model HA Inferno® air-fuel quick connect swirl tip has a specially designed insert that delivers reliable swirl combustion performance every time. It provides a consistently hotter flame that will engulf and wrap around the workpiece for maximum efficiency. It is constructed from thick and strong 304 stainless steel tube stock designed to be durable and long-lasting. The tip works and integrates with today's existing quick-connect air-fuel handles allowing contractors to simply and quickly connect to their existing torch handles using acetylene.

SPECIFICATIONS

• Quick connect with A-hose connections
• Constructed from thick and strong 304 stainless steel tube stock and brass for longer service life
• Unique swirl combustion design provides a consistent, hotter flame that engulfs and wraps around the work-piece for maximum efficiency.
• Every tip is tested twice - once to ensure the perfect orifice and again to ensure the flame quality.
• The exacting manufacturing standards used to develop this tip ensures the optimal delivery of fuel gas resulting in the perfect flame.
• Designed to work and integrate with existing quick-connect air fuel handles for efficiency and increased productivity.
• Tips are configured to produce reliable and repeatable flame performance and are evaluated using thermal photography techniques
• Use with air-fuel/acetylene
• Marked with Harris logo and tip size for easy identification
• One year warranty
• Compatible Handle Model Number: HQA-4, HQB-4
• Construction: 304 Stainless steel and brass
• Copper Tube Capacity - Acetylene - Brazing: 1/2"" - 1 1/4"" (12.70mm - 31.75mm)
• Copper Tube Capacity - Acetylene - Soft Solder: 1"" - 3"" (25.40mm - 76.20mm)
• Duty: Light
• Flow Capacity (SCFH) : 6.60 @ 14 PSI, 0.16 @ 0.9 BAR M3/HR.
• Gas / Gas Service: Air Acetylene
• Recommended Items/Accessories: Standard Tip Cleaner - Model C-9 - P/N 9000156, Quick Connect Adaptor - Model HTA - P/N 4300676 (Converts HAS-400 handle to quick connect)
