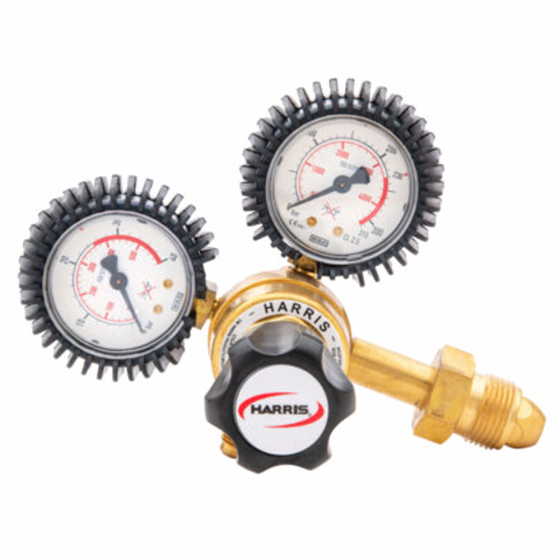

Harris® 610-400-580 Single-Stage Purging Pressure Regulator CGA 580 (Argon/Helium/Nitrogen)

APPLICATIONS

Model 601 single-stage regulator is designed for applications where weight and size are critical factors. Used for HVAC purging, pressure testing and blanketing with nitrogen or other inert gases. Gauges feature rubber gauge guards (Model CPR 63332 - PN 9009931) for added protection in abusive conditions. Plastic knob for easy grip and precise adjustment. Maximum delivery pressure 400 or 800 PSIG. Conveniently packaged in clamshell for point-of-purchase display.

SPECIFICATIONS

• For applications where weight, cost and size are critical factors
• Ideal for HVAC purging, pressure testing and blanketing
• Higher end features at an economical price
• Brass body and bonnet for longer service life
• Ergonomic, ABS plastic knob for easy grip and precise adjustments
• 50mm ABS plastic dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE ® seat from particulate contamination.
• Neoprene diaphragm for better pressure control
• Equipped with rubber gauge guards for added protection in abusive conditions.
• Conveniently packaged in clamshell for point-of-purchase display
• Adjusting Knob: ABS plastic
• Body: Brass
• Bonnet: Brass
• Certification: CGA E-4
• Cv: 0.17
• Delivery Pressure Gauge (PSIG): 600
• Delivery Pressure Range (PSIG): 0 - 400
• Diaphragm: Neoprene
• Duty: Light to medium
• Equipped With Rubber gauge guards for added protection in abusive conditions
• Gas / Gas Service: Argon, Helium, Nitrogen
• Gauges: 50mm ABS plastic dual scale (psi/bar)
• Inlet Connection: CGA 580
• Maximum Inlet Pressure (PSIG): 3000
• Outlet Connection: 1/4"" 45° Flare SAE CGA 165
• Pressure Regulation PSIG/100 PSIG: 0.40 psig
• Recommended Items/Accessories: Rubber Gauge Guards - Model CPR 63332 - PN 9009931
• Seat: PTFE
• Supply Pressure Gauge (PSIG): 4500
