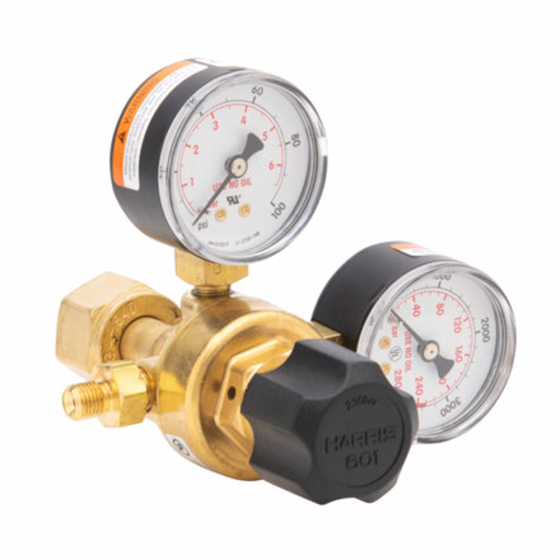

Harris® 601-80-540-A Economical Single-Stage Pressure Regulator CGA 540 (Oxygen)

APPLICATIONS

Model 601 single-stage regulator is designed to be compact and economical, but with features typically available in more expensive models. It is used where weight, cost and size are factors. Features a brass body, 50mm ABS plastic dual scale gauges and one-piece encapsulated seat design with internal filter and PTFE seat. This model is UL® listed.

SPECIFICATIONS

• Compact design at an economical price
• For applications where weight, cost and size are critical factors
• Higher end features at an economical price
• Brass body and bonnet for longer service life
• Large plastic knob for easy grip and precise adjustments
• 50mm ABS plastic dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE seat from particulate contamination
• Neoprene diaphragm for improved pressure control
• UL® listed
• Adjusting Knob: Plastic
• Body: Brass
• Bonnet: Brass
• Certification: CGA E-4
• UL® listed
• Cv: 0.08
• Delivery Pressure Gauge (PSIG): 100
• Delivery Pressure Range (PSIG): 0 - 80
• Diaphragm: Neoprene
• Duty: Light
• Gas / Gas Service: Oxygen
• Gauges: 50mm ABS plastic dual scale
• Inlet Connection: CGA 540
• Maximum Inlet Pressure (PSIG) : 3000
• Outlet Connection: A 3/8" - 24 RH
• Pressure Regulation PSIG/100 PSIG: 0.40 psig
• Seat: PTFE
• Supply Pressure Gauge (PSIG) : 4000
• Warranty: 7 Years
