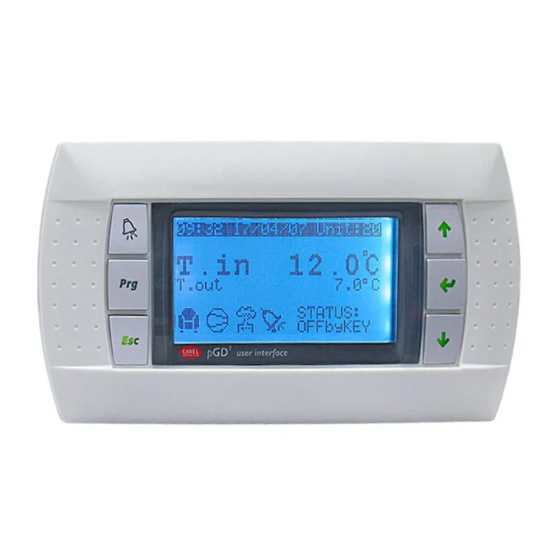

Graphic Display

Item
8453515030
  • California Prop 65

FEATURES

The pGN graphic display is an electronic device that is compatible with the previous pGD0/pGD1/pGDE line terminals; it allows complete management of graphics by the display of icons (defined at an application software development level), as well as the management of international fonts, in two sizes: 5x7 and 11x15 pixels. The application software resides on the pCO board, and therefore the terminal does not require any additional software for operation. Furthermore, the terminals feature a wide operating temperature range (-20T60 °C) and in the built-in version, the front panel ensures a high index of protection (IP65).

SPECIFICATIONS

Display
  • • Type: FSTN graphic
  • • Backlighting: white LEDs (controlled by ”application software”)
  • • Graphic resolution: 132x64 pixels
  • • Text mode
    • ○ 8 rows x 22 columns (font sizes 5x7 and 11x15 pixel) PGN1/PGNE
      ○ 4 rows x 20 columns (font sizes 5x7 and 11x15 pixel) PGN0
      ○ 4 rows x 11 columns (font sizes 11x15 pixel) PGN1/PGNE
      ○ 2 rows x 10 columns (font sizes 11x15 pixel) PGN0 or mixed modes
  • • Character height
    • ○ 3.5 mm (font size 5x7 pixels)
      ○ 7.5 mm (font size 11x15 pixels)
  • • Size of active area: 66x32 mm
  • • Size of display area: 72x36 mm

  • Keypad LEDs / Buzzer
  • • 2 programmable by “application software”, red and orange (Prg and Alarm buttons)
  • • 6 Blue LEDs, used as backlighting for keypad buttons
  • • Buzzer (optional - models *Z0)

  • Power supply
  • • Voltage: power supply from pCO through telephone cable or external source 18/30 Vdc protected with 250 mAT external fuse
  • • Maximum power input: 0.9 W

  • Maximum distances
  • • Maximum pLAN length: 500 m with AWG22 twisted pair cable
  • • pCO terminal distance:
    • ○ 2 m with telephone cable
      ○ 500 m with AWG22 twisted pair cable and TCONN6J000
      ○ Note: to reach the maximum length, use a bus layout, with branches not exceeding 5 m.

    Materials
  • • Transparent front panel: transparent polycarbonate
  • • Charcoal grey container back piece (wall/built-in): polycarbonate +ABS
  • • Keypad: silicon rubber
  • • Transparent cover glass/frame: transparent polycarbonate
  • • Self-extinguishing classification:
    • ○ V0 for transparent front panel and back piece
      ○ HB for silicon keypad and remaining parts

    Others
  • • Index of protection:
    • ○ IP65 for panel mounting
      ○ IP40 for wall mounting
      ○ UL type 1
  • • Operating conditions: -20T60 °C, 90% r.H. non-condensing
  • • Storage conditions: -20T70 *C, 90% r.H. non-condensing
  • • Software class and structure: A
  • • Classification according to protection against electric shock: To be integrated into class 1 or 2 devices
  • • PTI of insulating materials: PCB: PTI 250; insulation material PTI 175
  • • Period of electric stress across insulat. parts: long
  • • Category of resistance to fire and heat: D
  • • Immunity against voltage surges: Category II
  • • Environmental pollution: 2
  • Safety Standards
    California Prop 65 Yes
    Weights and Dimensions
    Operating Weight (lbs) 1
    Exterior Dimensions (D) (inches) 2.000000
    Exterior Dimensions (W) (inches) 4.000000
    Exterior Dimensions (H) (inches) 3.000000
    Shipping Weight (lbs) 1.000000
