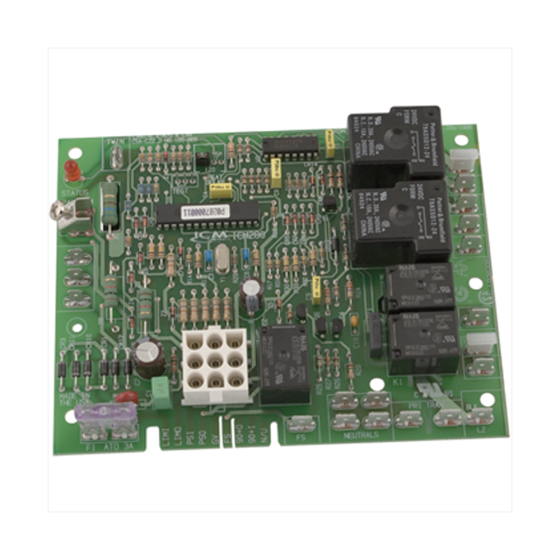

Goodman Replacement Control Board
Item
ICM280
FEATURES & BENEFITS
• Low cost form, fit and functional replacement board for Goodman, Janitrol, TI, White-Rodgers and UTEC.
• Microprocessor based design for precise timing.
• Functions with all 24 VAC thermostats.
• Diagnostic fault codes (blinking LED) for simple troubleshooting.
• Twining compatible with another ICM280.
• For 80+ and 90+ applications.
• 9-pin card slot connection and 9-pin Molex connector on board.
• UL recognized
• Line Voltage Range: 98 to 132 VAC @ 60Hz
• Ignitor: 5A @ 120 VAC
• Fan: 2 HP @ 240 VAC
• Inducer Motor: 7A @ 250 VAC
• Gas Valve: 1A @ 24 VAC
REPLACES
• Goodman: B180999-06, B180999-08, B180999-10, B180999-13, B180999-13S
• UTEC: 1012-933D
• Texas Instruments: 41F-5
• White-Rodgers: 50T35-730, 50T35-743
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 6.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 1.000000 |
