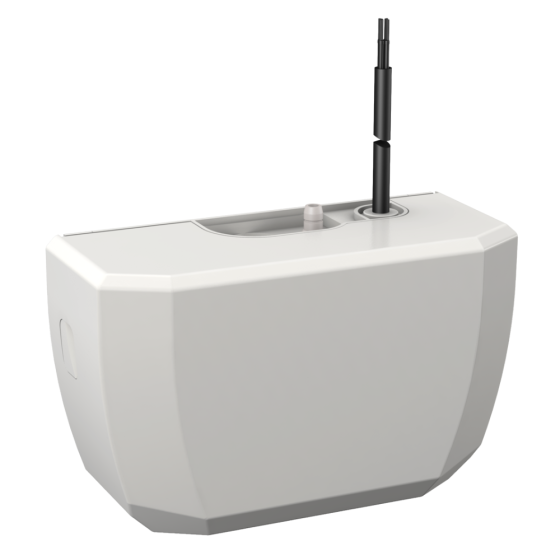

Ghost™ External Mini Pump Kit, 10.6GPH @ 0ft., 110/208/230Vac

FEATURES

The Ghost External pump mounts below mini-split evaporators for flexible, low-noise condensate removal. Its resilient mounting reduces vibration, while fully potted electronics enhance durability. A front-clip reservoir allows quick, no-disturb access for easy filter cleaning and maintenance.

• QUIET PERFORMANCE: Resilient, vibration-reducing mounting for low-noise operation

• LARGE CAPACITY: Extra-large reservoir minimizes pump cycling

• EASY MAINTENANCE: Clip-off reservoir and replaceable filter with tool-free access

• DURABLE CONSTRUCTION: Fully potted electronics resist vibration, moisture, and chemicals

• BUILT-IN SAFETY: 3A N/C dry contacts rated 5A inductive @ 230V AC

SPECIFICATIONS

• Pump Type: Rotary Diaphragm

• Pump Length: 6.5"

• Pump Width: 2.7"

• Pump Height: 4.2"

• Capacity: 10.6GPH @ 0ʹ Head / 3.6GPH @ 32.8ʹ Head

• Max BTUs: 157,000

• Max Head in Feet: 32.8

• Max Temperature: 158°F

• Water Storage: 7.8oz

• Sound Level: 20dB(A) @ 3.3ft (1M)

• Safety Switch: 3A NC

• Voltage: 100–240v

• Class: Class II Appliance

• Protection/Rated: IPX5, Continuous, Fully potted

• Remote Reservoir: N

• Plenum Rated: N

• Variable Speed: N

• Plug & Play: N

INCLUDES

• Pump Assembly with Reservoir

• Filter

• Float

• 1A Fuse

• Connection Clamp

• Installation Screw (3x)

• Wall Anchors (3x)

• Anti-siphon Device

• Install Manual

Specifications

Electrical
Voltage	110/208/230

Safety Standards
California Prop 65	Yes

Specification
Gallons Per Hour	6GPH

Weights and Dimensions
Operating Weight (lbs)	2
Exterior Dimensions (D) (inches)	8.000000
Exterior Dimensions (W) (inches)	5.000000
Exterior Dimensions (H) (inches)	6.000000
Shipping Weight (lbs)	2.000000

Resources

83939_Installation.pdf

83939_Submittal.pdf
