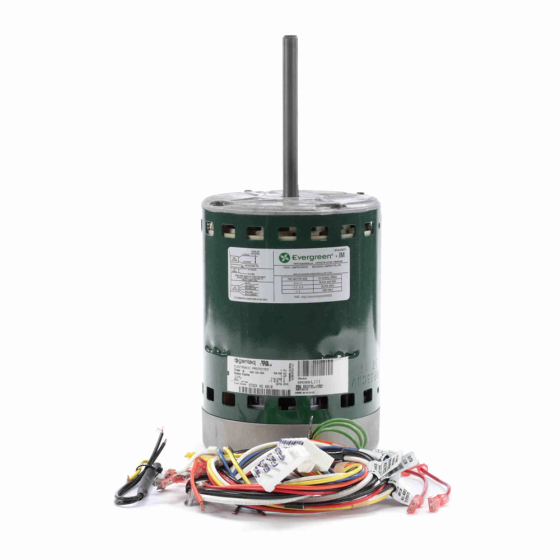

Genteq EVERGREEN™ Variable Speed Direct-Drive Blower Motor 1 HP, 1075 RPM, 115/230Vac, 11.0/6.7A, 5 Speed (ECM)

FEATURES & BENEFITS

• Output HP: 1 Hp
• Output KW: 0.75 kW
• Frequency: 60 Hz
• Voltage: 115/230 V
• Current: 11.0/6.7 A
• Speed: 1075 rpm
• Phase: 1
• Duty: Continuous Air Over
• Insulation Class: B
• Frame: 48
• Enclosure: Open Air Over
• Thermal Protection: No Protection
• Ambient Temperature: 40 °C
• UL Listed: No
• Number of Speeds: 5
• Electrical Type: Electronically Commutated Motor
• Poles: 12
• Rotation: Reversible
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 0.500 in
• Shaft Extension: 4.92 in
