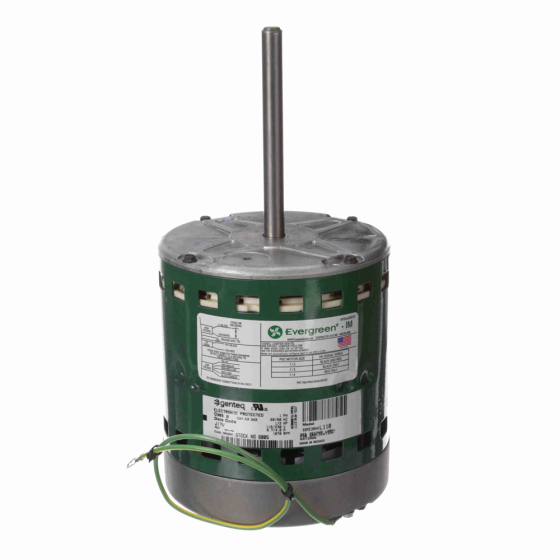

Genteq EVERGREEN™ Variable Speed Direct Drive Blower Motor 1/2 HP, 1075 RPM, 115/230Vac, 6.7/4.0A, 5 Speed (ECM)

Item
GE-6005
  • California Prop 65

FEATURES & BENEFITS

• Horsepower: 1/2 Hp
• Output KW: 0.37 kW
• Voltage: 115/230 Vac
• Frequency: 60 Hz
• Current: 6.7/4.0 A
• Speed: 1075 rpm
• Phase: 1
• Duty: Continuous Air Over
• Insulation Class: B
• Frame: 48
• Enclosure: Open Air Over
• Thermal Protection: No Protection
• Ambient Temperature: 40 °C
• UL Listed: No
• Number of Speeds: 5
• Electrical Type: Electronically Commutated Motor
• Poles:12
• Rotation: Counterclockwise/Clockwise
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 0.500 in
• Shaft Extension: 4.92 in
• Thru-bolts Extension: 0 in

Specification
Ambient Temperature 40°C
Motor HP 1/2
Motor Type ECM
Number of Speeds 5
RPM 1075
Electrical
Voltage 115/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 17.85
Exterior Dimensions (D) (inches) 14.700000
Exterior Dimensions (W) (inches) 6.500000
Exterior Dimensions (H) (inches) 7.400000
Shipping Weight (lbs) 18.000000
